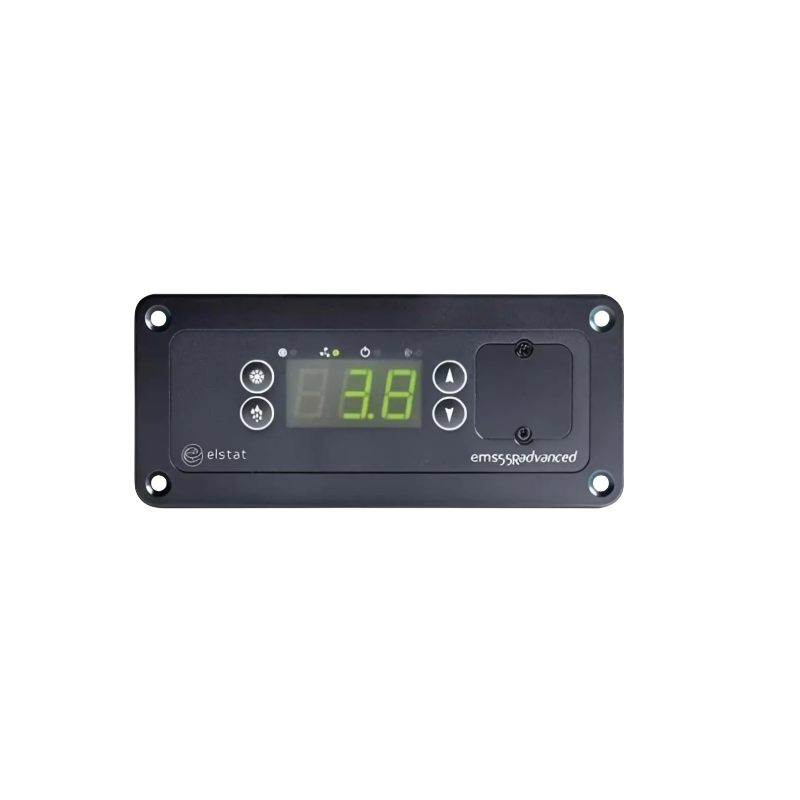

Beverage Cooler Temperature Controller with Relay Outputs for the Compressor, Fans, Lights and one digital input for the door switch.
Supplied with 1 x 1.5m NTC temperature probe.
Requires a 12 Volt Transformer to be ordered separately.
This controller is designed to control beverage coolers and has energy saving functions as well as high and low voltage protection.
Technical Details
Mounting: Panel Mount
Housing: Self Extinguishing Plastic
Frontal Protection Rating: IP65
Size: 144 x 64 x 100mm (L X H X D)
Panel Cut out: 122 x 42mm
Display: 3-digit red LED with 1 decimal point
Power supply: 12VAC 50hz 3VA
Analogue Inputs: 1 X Cabinet Probe, 1 x Condensor Probe
Digital Input: 1 Door Switch Input
Relay Outputs:
Relay 1 for Compressor 12A 240VAC
Relay 2 for Evaporator Fans 6A 240VAC
Relay 3 for Lights 500w Flourescent
Defrost: Compressor off cycle (Programmable)
