2 Stage Heating/Cooling Controller 230V

R833.75
VAT included

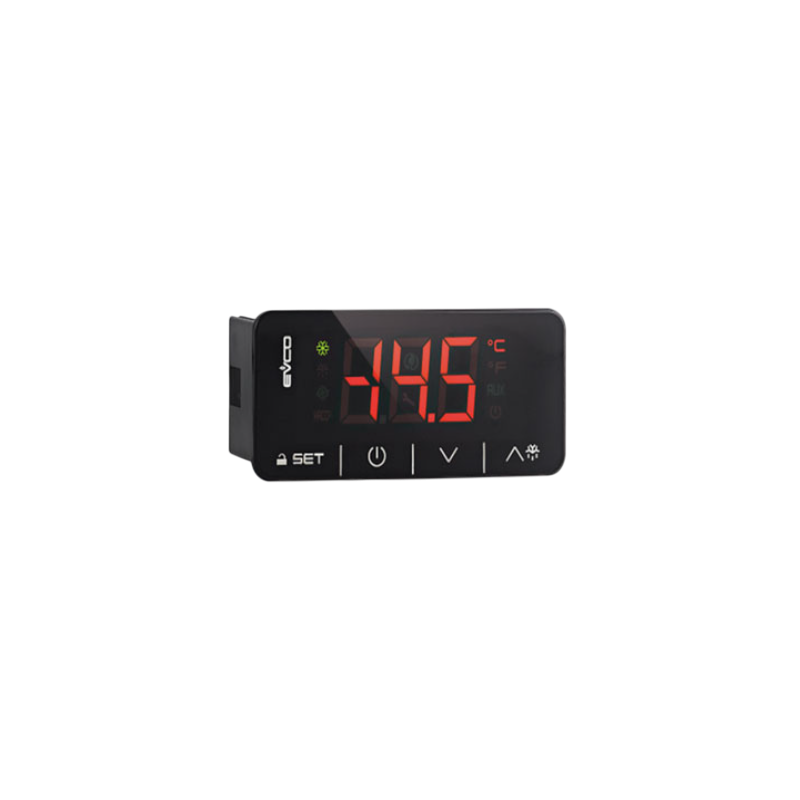

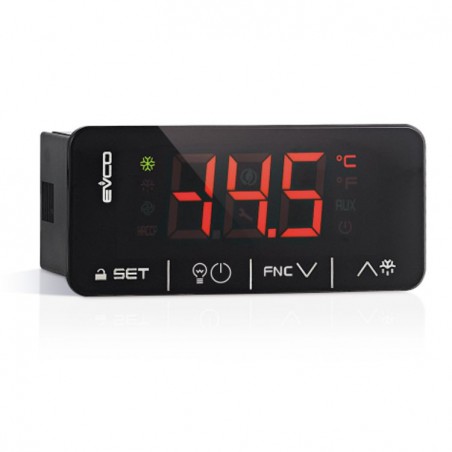

The EVCO EV3402P7 is a 230V 2 Stage digital temperature controller with a LED display and is capable of controlling medium temperature refrigeration and heating applications. Configurable for Various Applications. Supplied with 1 x 1.5m NTC Probe

Quantity

The instrument has 1 x cabinet temperature sensor, 1 x 16A (MAX 10A Resistive) compressor/element relay and 1 x digital door input.



Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 74 x 32mm (L X H)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply: 230 VAC 50hz 3VA

Temperature range:

Depending on Probe Type

Analogue Inputs: 2 (Door Switch or 2nd Probe)

Probe (NTC or PTC) Cabinet Temperature

Probe (NTC or PTC) Condenser Temperature

Digital Input: 1 Door Switch Input (Available if 2nd Probe not used)

Relay Outputs:

Relay 1 for Compressor or heater element (10A Resistive) 250VAC (N/O contact)

Control Type: On/Off

Defrost: Compressor off cycle (Programmable)

Energy Saving Function: Yes

EVCO EV3402P7
5 Items

Data sheet

Supply Voltage
230VAC
Mounting Type
Panel
No of Sensor Inputs
1
Sensor Types
NTC/PTC
No of Relay Outputs
2

Download

EV3402P7 Manual

Download (755.05KB)
