  • EVCO EVK231 Refrigeration Controller
  • Fridge Controller 230VAC Panel Mounted

Fridge Controller 230VAC Panel Mounted

R595.00
VAT included

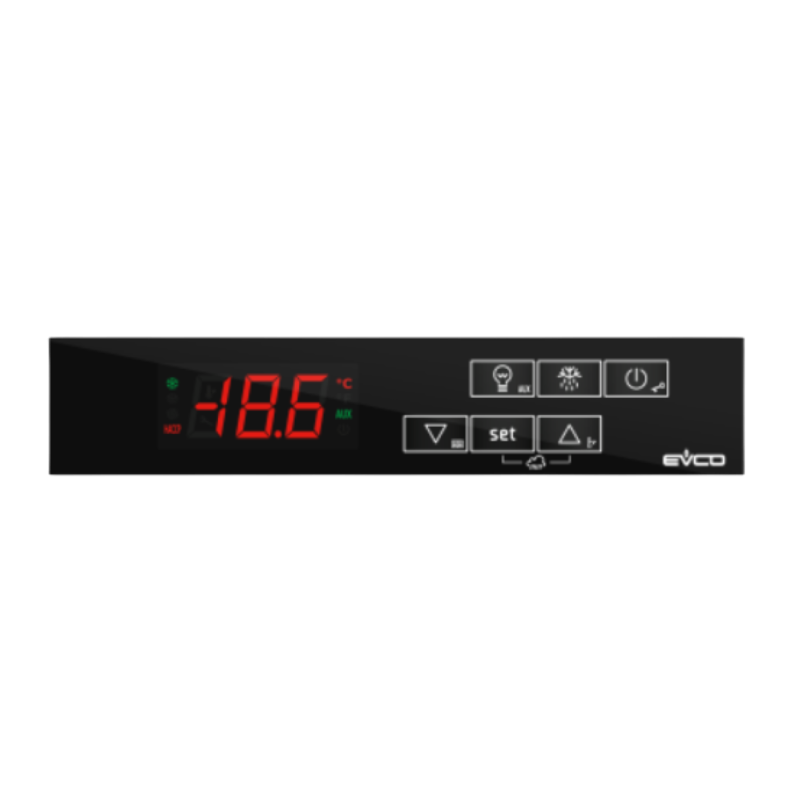

The EVR221P7 is a 230VAC panel mounted (140 x 30mm) digital temperature controller with a LED display and is capable of controlling medium temperature refrigeration applications.

Supplied with 1 x 1.5m NTC temperature probe.

Quantity

The instrument has 1 x cabinet temperature sensor, 1 x 16A compressor relay and 1 x digital door input.



Technical Details

Mounting:  Panel  (Cutout 140 x 30mm)

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 180mm x 34mm x 45mm (H X W x D)

Display: 3-digit red LED with 1 decimal point

Power supply: 230 VAC 50hz 3VA

Temperature range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe

Analogue Inputs: 1 Probe (NTC or PTC)

Digital Input: 1 Door Switch Input

Relay Outputs:

Relay 1 for Compressor 16A 250VAC (N/O contact)

Defrost: Compressor off cycle (Programmable)

EVR221P7
16 Items

Data sheet

Supply Voltage
230VAC
Mounting Type
Panel
No of Sensor Inputs
1
Sensor Types
NTC/PTC
No of Relay Outputs
1

Download

EVR221P7 Manual

Download (648.22KB)
