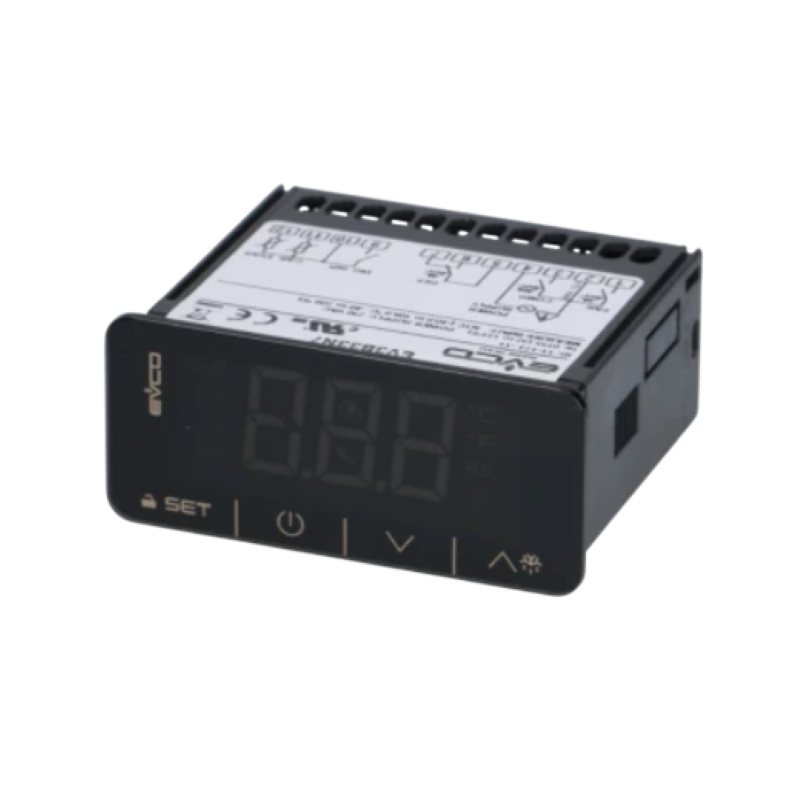

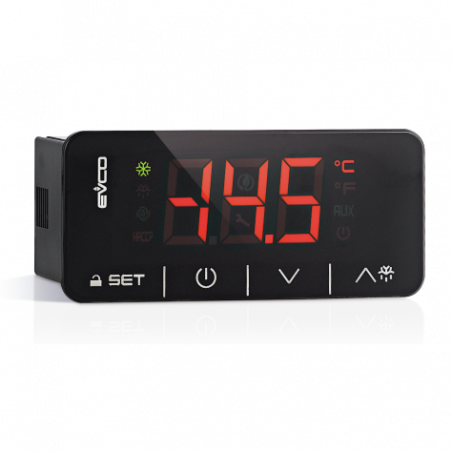

Air Dryer Controller

R1,667.50
VAT included

EVCO Compressed Air Dryer Temperature Controller, with Drain Valve, Compressor and Alarm Relay Outputs. 1 X NTC/PTC Temperature Sensor Input and Digital Inputs for High Pressure and Filter Change. Panel Mounted 230V. Supplied with 1 x 1.5m NTC Temeprature Sensor

Quantity

Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 74 x 32mm (L X H)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply: 230 VAC 50hz 3VA

Temperature range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe (Supplied)

Analogue Input: 1

Probe (NTC or PTC) Heat Exchanger Temperature

Digital Input: 2

High Pressure

Filter Change

Relay Outputs:

Relay 1 for Compressor 30A (10A Resistive) 250VAC (N/O contact)

Control Type: On/Off

Defrost: Compressor off cycle (Programmable)

EV3B33N7VXRX04
25 Items

Data sheet

Supply Voltage
230VAC
Mounting Type
Panel
Sensor Types
NTC/PTC
No of Relay Outputs
1
