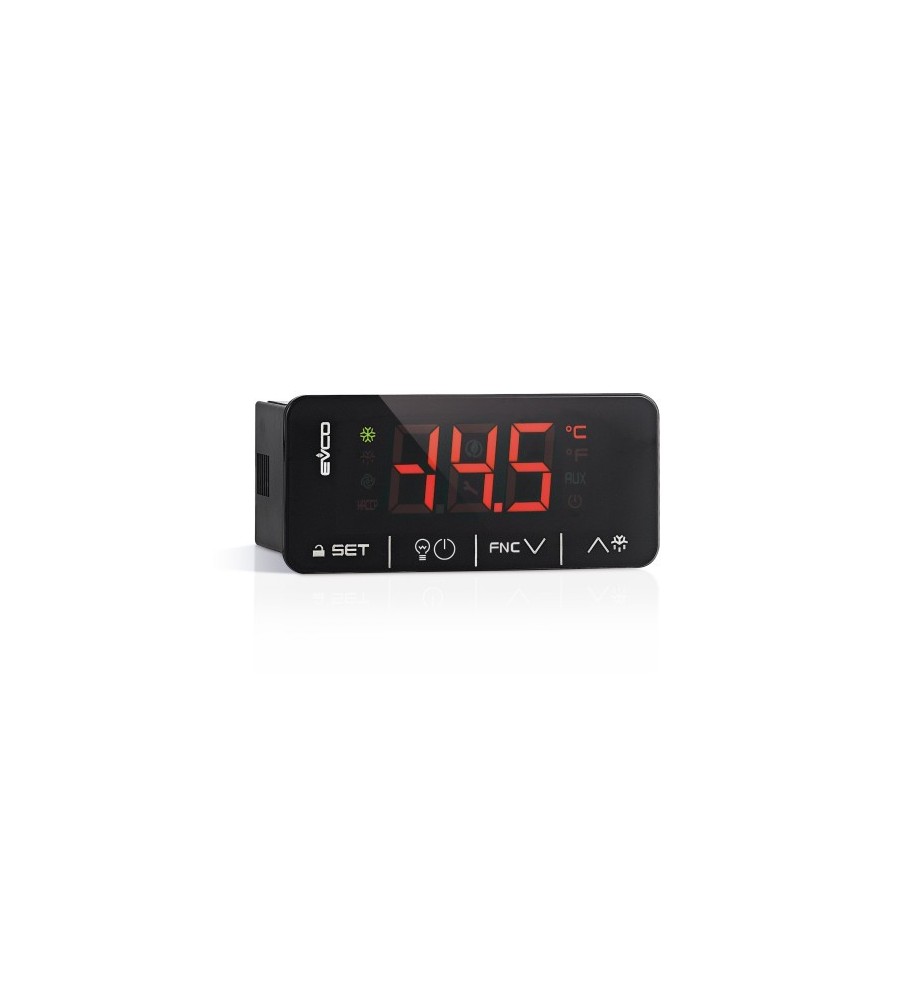

EV3273N9 Wi Fi Controller
R3,186.65
VAT included
The EVCO EV3294N9 is a Panel Mounted Controller for Refrigeration Applications. It has 4 Relay Outputs, 2 Sensor Inputs and 1 Digital Input. The controller has the option of a bluetooth or Wi Fi transmitter and can be connected to the Evconnect App on your Smartphone. You will be able to access logs and settings from the App.
Specifications:
Wifi Connectivity: YES
Housing: Self Extinguishing Grey
Frontal Protection Degree: IP65
Size: 75 x 33 x 85mm (L x H x D)
Panel Cut Out: 71 x 29mm
Display: 3-digit red LED with 1 decimal point
Power Supply: 115 - 230 VAC 50hz 3VA (Also available in 12/24VAC/DC)
Temperature Range:
-50 Deg C to +120 Deg C with a PTC Probe
-40 Deg C to +110 Deg C with a NTC Probe
Analogue Inputs: 2 Probes (NTC or PTC)
Digital Inputs: 2 Multipurpose
Relay Outputs:
Relay 1: Compressor 16A 250VAC (NO contact)
Relay 2: Defrost 8A (hot gas or electric)
Relay 3: Evaporator fan 5A
EV3273N9 Wi Fi Controller
Data sheet
- Supply Voltage
- 100-230VAC
- Mounting Type
- Panel
- Panel Cut Out Size
- 71 x 29mm
- Control Range
- Heat OR Cool
- No of Sensor Inputs
- 2
- Sensor Types
- NTC/PTC
- No of Relay Outputs
- 4
- Digital Inputs
- 1
- Country of Manufacture
- Italy
- Application
- Remote Monitoring/Logging
