Temperature, Humidity and Co2 Transmitters and Sensors

Sensors / Transmitters

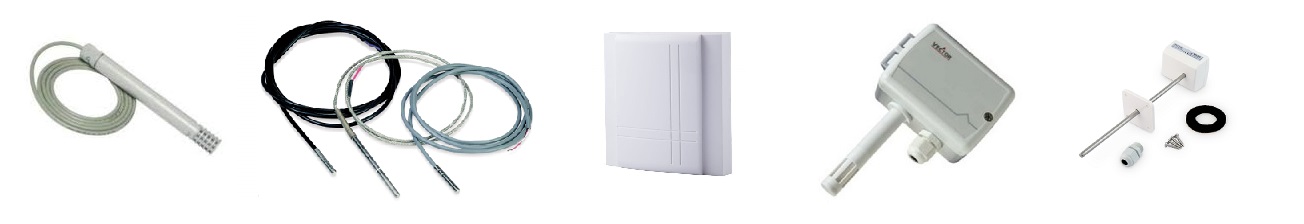

View our Range of Temperature, Humidity and Co2 Sensor Transmitters with various outputs for Building Management Systems (BMS)

  • Duct/Immersion Temperature Sensor

    The Vector SDB-Tn10-12-W-1 is a Duct Mounted Temperature Sensor which can also be used as an Immersion Sensor by fitting an AMI Stainess Steel Pocket (Available in different lengths)

    Please see Spec Sheet for specific ordering codes

  • Humidity Sensor Wall Mounted - LAE Electronics

    The LAE Universal Wall Mounted Humidity Sensor HT2WAD with 0-10V Output

    This sensor needs to be connected to controller with a 0-10V input as listed in Controllers - Analogue Inputs in the Category menu.

  • Indoor Co2 Transmitter

    The Vector SRC-C1 Indoor Wall Mounted Co2 Transmitter has an option of   0 - 10V /  2 - 10V / 0 -20mA / 4 -20mA  Output with a 0 - 2000ppm Range

    Can be used a Proportional Fresh Air Controller or Direct Control of an Extract Fan

    Display module available.

  • Indoor Humidity Transmitter

    The Vector SRC-H1-A3 Indoor Wall Mounted Humidity Transmitter has an option of 0-10V / 0-20mA / 4 -20mA Output Configurable by jumpers

  • Indoor Humidity Transmitter and Temp Sensor NTC

    The Vector SRC-H1Tn10-A3 Indoor Wall Mounted Humidity Transmitter with Temperature Sensor has options of 0-10V / 2-10V / 0 - 20mA / 4 -20mA output for humidity configurable by jumpers and a NTC Temperature Probe.

  • Indoor Temperature Sensor

    The Vector SRA-Tn10 Indoor Wall Mounted Temperature Sensor with a NTC Probe (10k ohm @ 25 Deg C) Temperature Range is -70 ...... 150 deg C

    Available in different sensor options, please see Spec Sheet for ordering codes

  • Indoor Temperature Sensor

    The Trend TB/TS Wall Mounted Space Temperature Sensor has a thermister output. The Temperature Range is -10 ...... 40 deg C

  • Indoor Temperature Transmitter

    The Vector SRC-T1 Wall Mounted Temperature Transmitter Sensor has options of 0-10V / 2-10V /  0 - 20mA / 4-20mA outputs configurable by jumpers. The Sensor Temperature Range is -40 ...... 60 deg C

  • Indoor Temperature Transmitter

    The Trend T/PS Wall Mounted Space Temperature Transmitter Sensor has an 4-20mA output. The Temperature Range is -10 ...... 40 deg C

  • J Type Temperature Probe 1.5m

    EVCO EVTPJ815V200 J Type Thermocouple, 1.5m Steel Braded Lead, 6 x 100mm Stainless Steel tip. Range 0 to 350 Deg C

    Suitable for most J Type Controllers.

  • J Type Temperature Probe 3m

    EVCO EVTPJ830V200 J Type Thermocouple, 3m Steel Braded Lead, 6 x 100mm Stainless Steel tip. Range 0 to 350 Deg C

    Suitable for most J Type Controllers.

  • NTC Temperature Probe 1.5m

    EVCO EVTPN615F200 NTC Temperature Probe, thermoplastic lead, 6 x 15mm overmoulded tip. Range -40 to 110 Deg C

    Suitable for all EVCO NTC Controllers.
