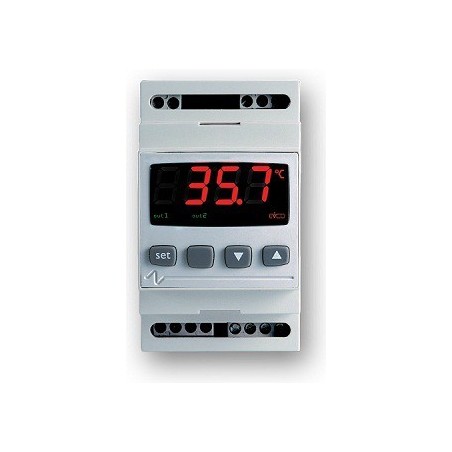

Fridge/Heating Controller - EVCO EV6221P7
  • Fridge/Heating Controller - EVCO EV6221P7
  • EVCO EVK231 Refrigeration Controller

Freezer Controller 230VAC DIN

Freezer Controller 230VAC DIN

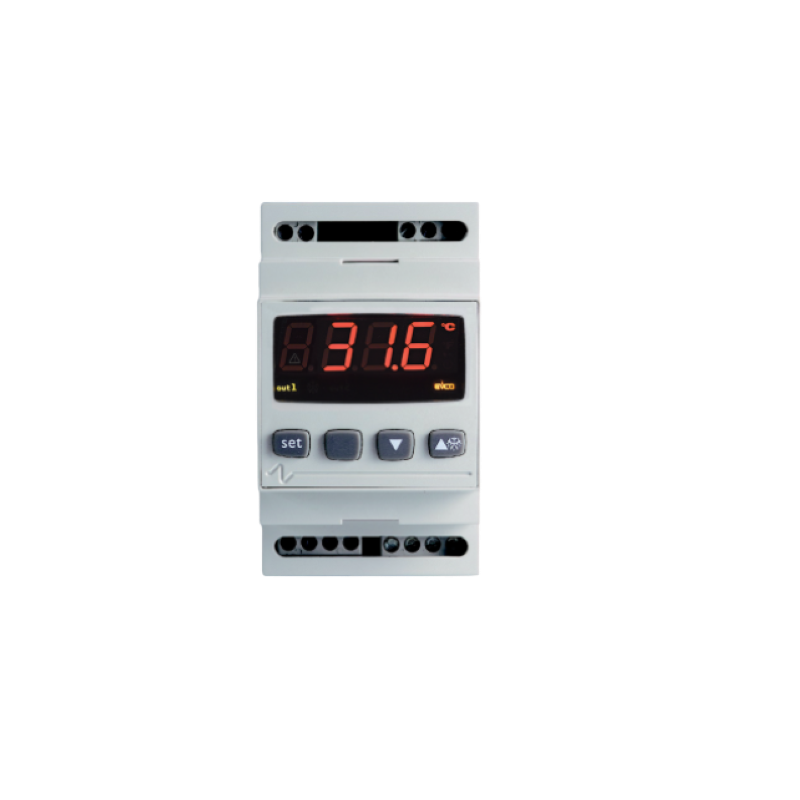

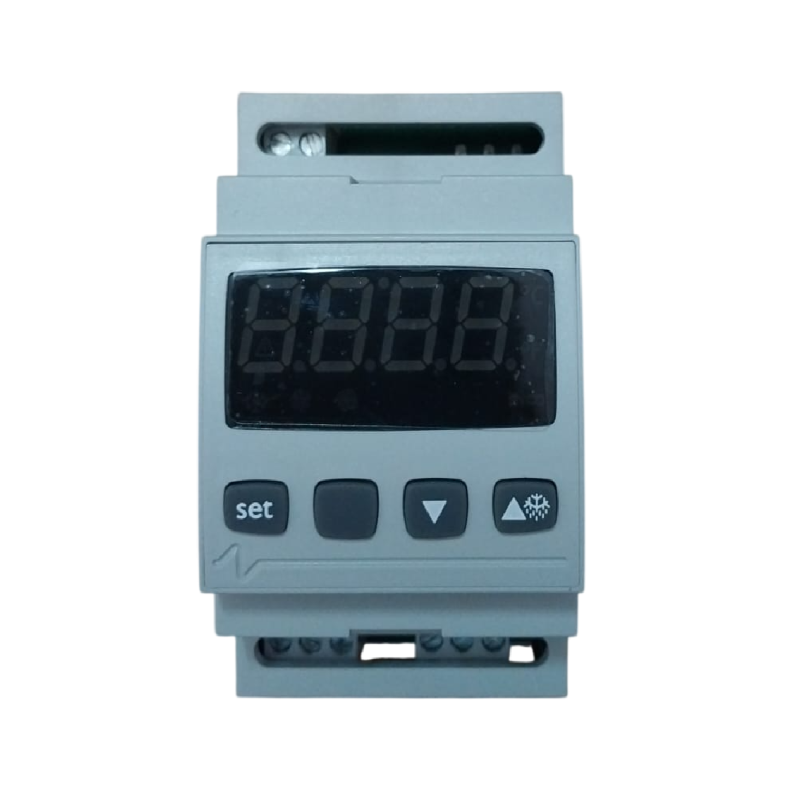

The EVCO EV6223P7 is a 230VAC DIN Rail mounted digital temperature controller with a LED display and is capable of controlling freezer applications.

Supplied with 2 x 1.5m NTC temperature probes. (Cabinet & Evaporator)

The instrument has 1 x cabinet temperature sensor & 1 x evaporator sensor, 1 x 16A compressor relay, 1 x defrost relay, 1 x evaporator fan relay and 1 x digital door input.


Technical Details

Mounting: DIN Rail Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 90mm x 53mm x 61mm(H X W x D)

Display: 3-digit red LED with 1 decimal point

Power supply: 230VAC

Temperature range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe

Analogue Inputs: 2 Probes (NTC or PTC)

Digital Input: 1 Door Switch Input

Relay Outputs:

Relay 1 for Compressor 16A 250VAC (N/O contact)

Relay 2 for defrost

Relay 3 for evaporator fan


Data sheet

Voltage Supply

Specific References




Download (451.23KB)
