Blast Freezer Controller

Blast Freezer Controller

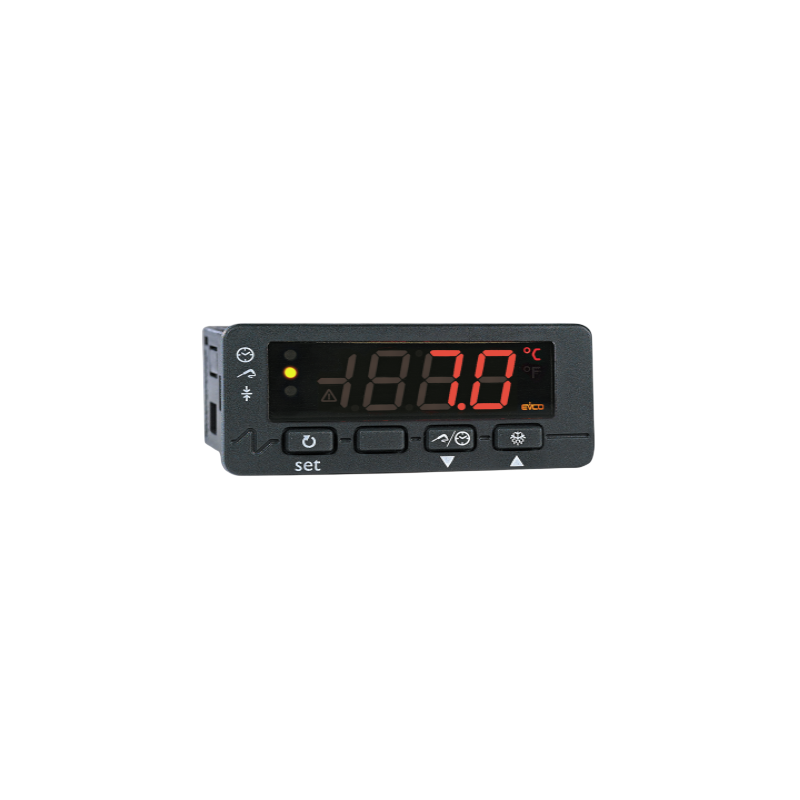

EVK802 is a basic controller for the management of blast chillers.It is available in compact version, in the standard size 74 x 32 mm; the user interface consists of a custom display (with decimal point and function icons), three keys and guarantees an IP65 protection rating, for easy cleaning.

Some models have a 16 res. A @ 250 VAC electromechanical relay for the direct control of middle power compressors, avoiding the use of contactors. It is able to manage positive and negative blast chilling cycles, both temperature and time controlled; the temperature controlled cycles can be preceded by a test to verify the proper insertion of the needle probe.
Installation is by panel, with snap-in brackets.

Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 74 x 32mm (L X H)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply: 230 VAC 50hz 3VA

Temperature range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe

Analogue Inputs: 2 Probes (NTC or PTC)

Digital Input: 1 Door Switch Input

Relay Outputs:

Relay 1 for Compressor

Relay 2 to Evaporator Fan

EVK802N7

Specific References

Download

EVK802 Manual

Download (576.24KB)
