Heating/Cool Controller 12-24V
R833.75
Tax included

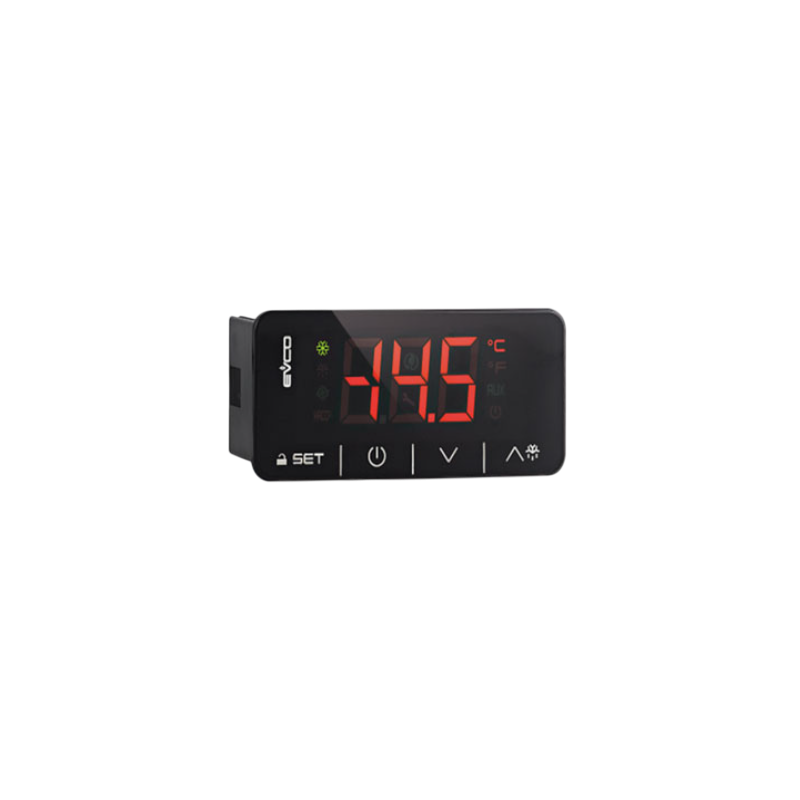

The EVCO EV3401M3 is a 12-24VAC/DC digital temperature controller with a LED display and is capable of controlling medium temperature refrigeration and heating applications. Ideal for Baine Maries and Incubators. Configurable to accepts most types of probes (Not Supplied)
The instrument has 1 x cabinet temperature sensor, 1 x 16A (MAX 10A Resistive) compressor/element relay and 1 x digital door input.
Technical Details
Mounting: Panel Mount
Housing: Self Extinguishing Plastic
Frontal Protection Rating: IP65
Size: 74 x 32mm (L X H)
Panel Cut out: 71 x 29mm
Display: 3-digit red LED with 1 decimal point
Power supply: 230 VAC 50hz 3VA
Temperature range:
Depending on Probe Type
Analogue Inputs: 2 (Door Switch or 2nd Probe)
Probe (NTC or PTC) Cabinet Temperature
Probe (NTC or PTC) Condenser Temperature
Digital Input: 1 Door Switch Input (Abvailable if 2nd Probe not used)
Relay Outputs:
Relay 1 for Compressor or heater element (10A Resistive) 250VAC (N/O contact)
Control Type: On/Off
Defrost: Compressor off cycle (Programmable)
Energy Saving Function: Yes
EVCO EV3401M3
81 Items
Data sheet
- Supply Voltage
- 12-24VAC/DC
- Mounting Type
- Panel
- No of Sensor Inputs
- 1
- Sensor Types
- Multiple Types - Configurable
- No of Relay Outputs
- 1
The EVCO EV3401M3 is a 12-24VAC/DC digital temperature controller with a LED display and is capable of controlling medium temperature refrigeration and heating applications. Ideal for Baine Maries and Incubators. Configurable to accepts most types of probes (Not Supplied)
