Prover Controller

Prover Controller

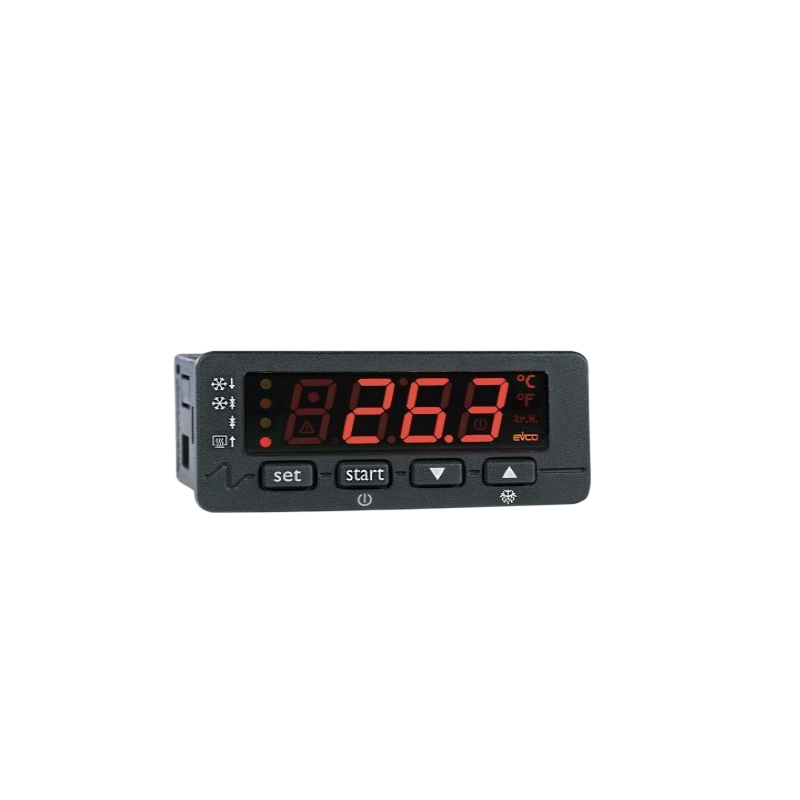

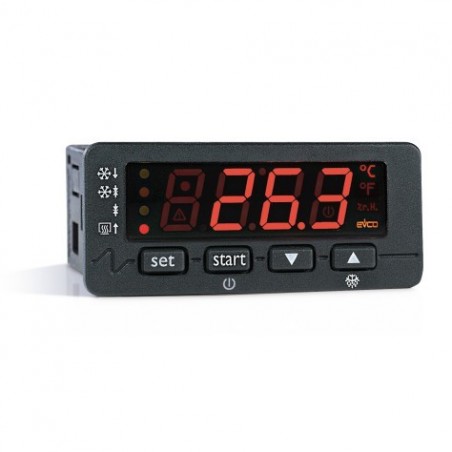

The EVCO EVK614N9 is a 230VAC Panel Mounted Prover Controller. The controller has 2 Temperature Inputs, 2 x Digital Inputs and 4 x Relay Outputs for Compressor, Humidifier, Fan and Heater.

Technical Details

Mounting:Panel Mount

Housing:Self Extinguishing Plastic

Frontal Protection Rating:IP65

Size:74 x 32 x 59mm (L x H x D)

Panel Cut out:71 x 29mm

Display:3-digit red LED with 1 decimal point

Power supply:230 VAC 50hz 3VA

Temperature range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe

Analogue Inputs:

2 NTC/PTC Cabinet and Evaporator

Digital Inputs:

2 Term and Door

Relay Outputs:

Relay 1: Compressor 16A 250VAC (NO contact)

Relay 2: Humidifier 8A 250VAC

Relay 3: Fan 8A 250VAC

Relay 4: Heater 8A 250VAC

EVCO EVK614N9

Specific References

Download

EVK614N9

Download (878.82KB)
