Heating/Cooling Controller 230VAC

Heating/Cooling Controller 230VAC

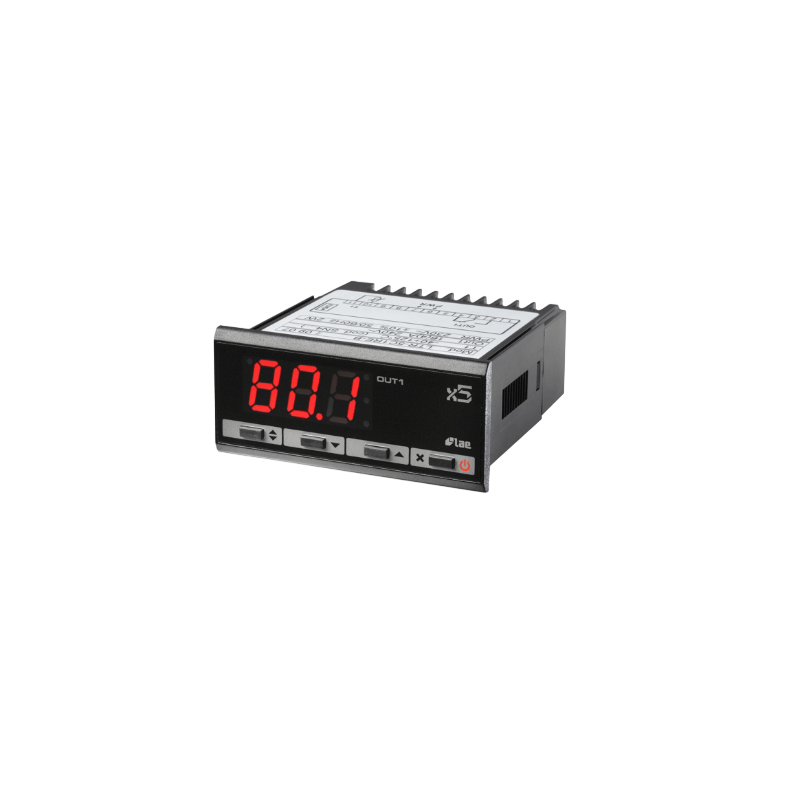

The LAE AC1-5JS2RW is a 230VAC digital temperature controller with a LED display and is capable of controlling heating applications and accepts J/K Type Thermocouples (Not supplied) with 2 Relay Outputs

Volume discounts

Quantity Unit price You Save
5 R868.37 Up to R482.43
10 R820.12 Up to R1,447.28
20 R771.88 Up to R3,859.40
50 R723.64 Up to R12,060.63
100 R675.40 Up to R28,945.50

The instrument has 1 x J or K Type temperature sensor input & 2 x Relay Outputs.

Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP55

Size: 74 x 32mm (L X H)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply: 115-230VAC

Temperature range:

Depending on Probe

Analogue Inputs: 1 Probes (J or K Type Thermocouple) Configurable

Relay Outputs:

Relay 1: 16A (4A) 250VAC (N/O contact)

Relay 2: 8A (2A) 250VAC

Control Type: On/Off or PID

LAE AC1-5JS2RW

Specific References

Download

AC1-5JS2RW Manual

Download (255.09KB)
