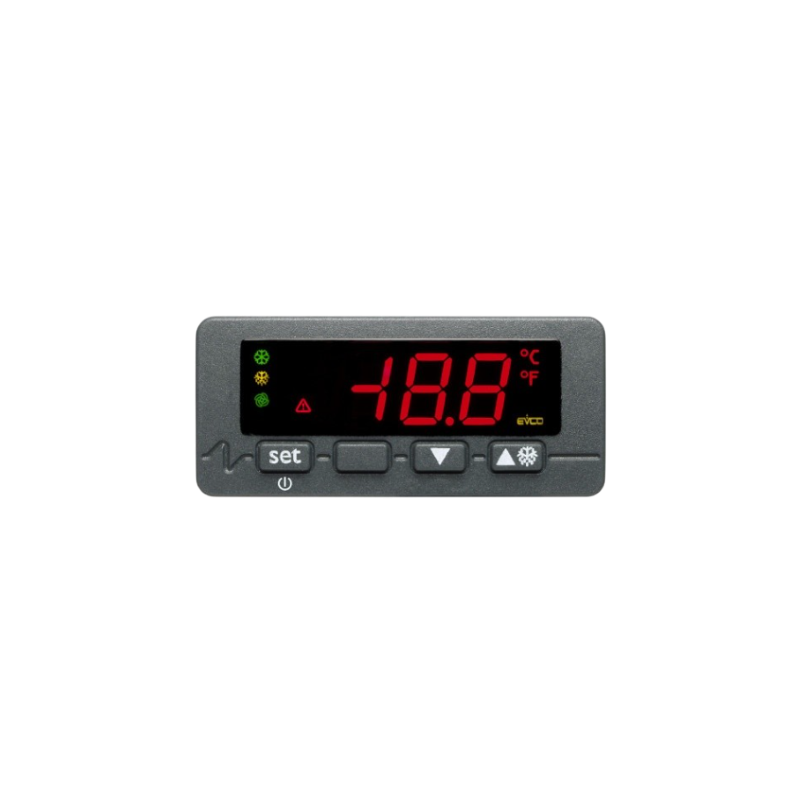

EVCO EVK441N7 Chilled/Heated Water Controller

EVCO EVK441N7 Chilled/Heated Water Controller

The EV4411N7 is a digital thermostat designed to control chilled or heated water by means of switching a relay output. The controller has 2 NTC Temperature Sensors (Flow and Return)

Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 74 x 32 x 59mm (L x H x D)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply: 230 VAC 50hz 3VA

Temperature range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe

Analogue Inputs: 2 Probes (NTC or PTC)

Relay Outputs:

Relay 1: General Purpose 16A 250VAC (NO contact)

EVK441N7

Data sheet

Supply Voltage
230VAC
Mounting Type
Panel
Panel Cut Out Size
71 x 29mm
Control Range
Heat OR Cool
No of Sensor Inputs
2
Sensor Types
NTC/PTC
No of Relay Outputs
1
Digital Inputs
1
Country of Manufacture
Italy
Application
Chilled/Heated Water

Specific References

Download

EVK441N7 Manual

Download (602.08k)
