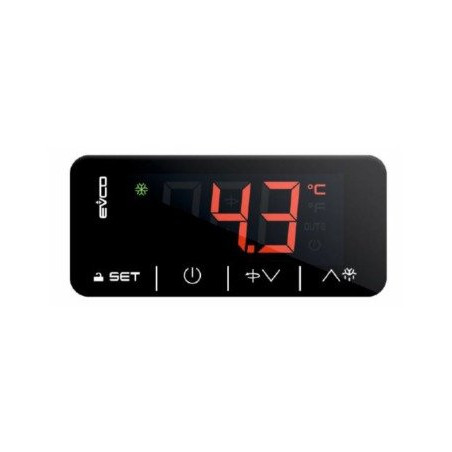

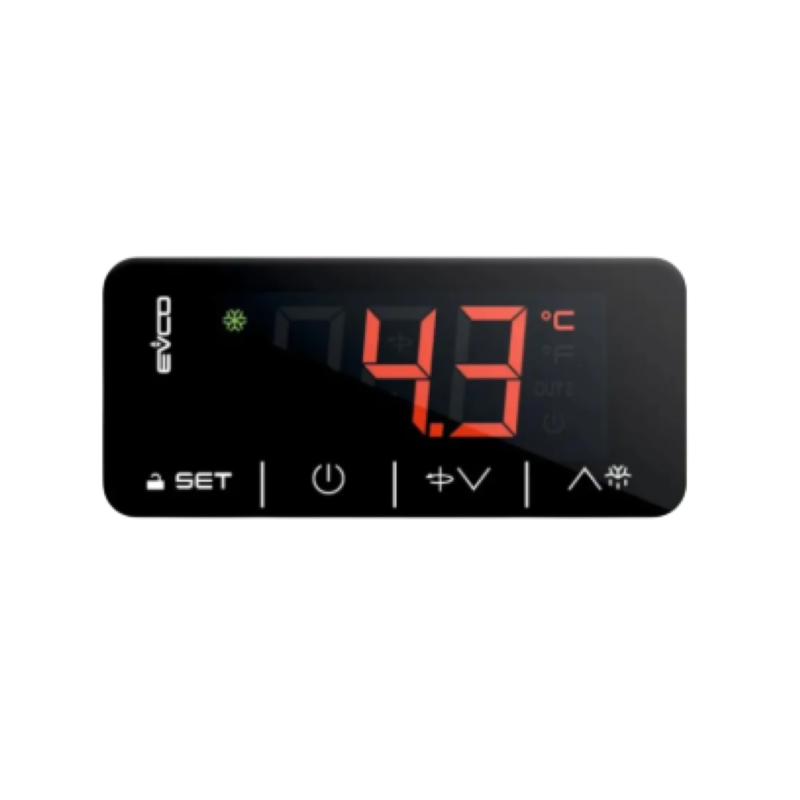

Milk Tank/Ice Cream Controller -230V

R891.25
VAT included

The EVCO EV3143N7 is a 230VAC digital thermostat designed to control Milk Tank Coolers, Ice Cream Batch Freezer as well as applications with 2 independent cooling systems. The controller has 2 x Temperature probe inputs, 3 Relay outputs. Supplied with 1 x 1.5m NTC temperature probe

Quantity

The EV3413N7 can use 2 temperature inputs to control 2 different relay outputs with their own setpoints (heating or cooling operation) Can be configured to Control Milk Tank Coolers and Ice Cream Batch Freezers.

Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 74 x 32mm (L X H)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply: 230 VAC 50hz 3VA

Temperature range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe

Analogue Input: 1 Probe (NTC or PTC)

Digital Outputs:

Relay 1: Compressor 16A 250VAC (N/O contact)

Relay 2: Agitator 8A 250VAC (change over contact)

Relay 3: AUX or Alarm 8A 250VAC (N/O contact)

EVCO EV3143N7
11 Items

Data sheet

Supply Voltage
230VAC
Mounting Type
Panel
No of Sensor Inputs
1
Sensor Types
NTC/PTC
No of Relay Outputs
3
