Split Refrigeration Controller

R527.85
VAT included

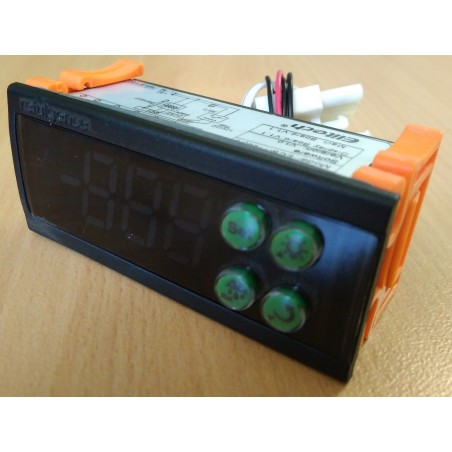

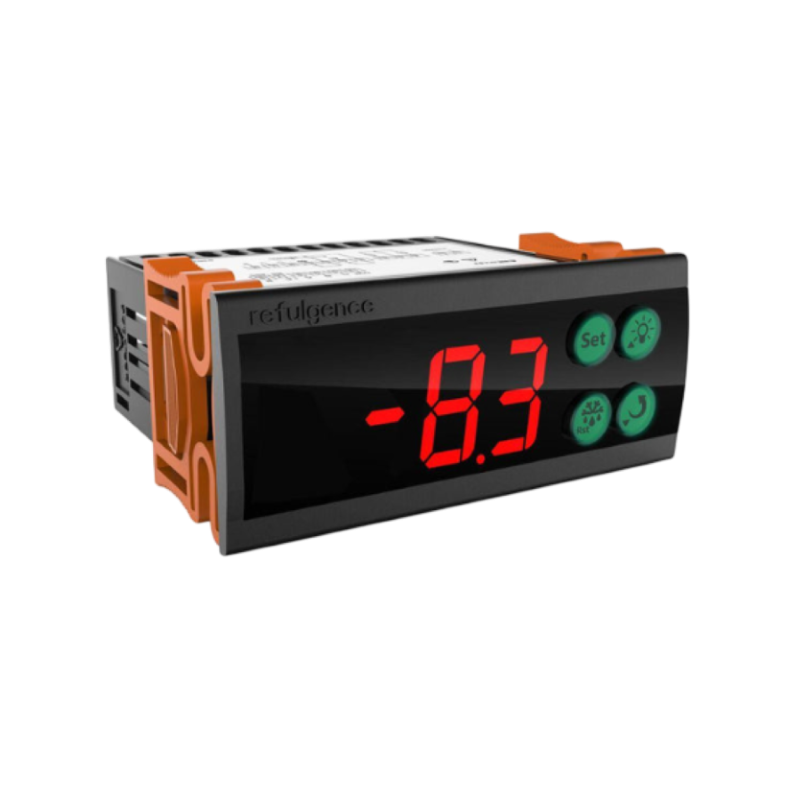

This Panel Mounted Temperature Controller is designed to control refigeration applications with limited space. The controller has one external 30A relay for the compressor and is supplied with a 1.5m NTC Temperature Probe and is 230VAC  to 12v Transformer.

Volume discounts

Quantity Unit price You Save
5 R475.07 Up to R263.93
10 R448.67 Up to R791.78
20 R422.28 Up to R2,111.40
50 R395.89 Up to R6,598.13
100 R369.50 Up to R15,835.50
Quantity

Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP55

Size: 74 x 32 x 30mm (L X H x D)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply:  230VAC

Temp Range: -40 to 99.9 Deg Celsius

Analogue Inputs: 1 NTC Probe 1.5m Length

Temperature range:

-40 to 99.9 Degree Celcius

Outputs:

Relay 1: 30A Compressor

Control Type: On/Off

ECS1100
20 Items

Data sheet

Supply Voltage
230VAC
Mounting Type
Panel
No of Sensor Inputs
1
Sensor Types
NTC/PTC
No of Relay Outputs
1

Download

ECS1100 Manual

Download (998.71KB)
