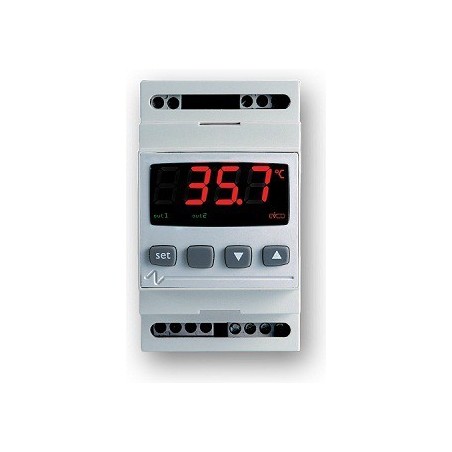

Fridge/Heating Controller - EVCO EV6221P7
  • Fridge/Heating Controller - EVCO EV6221P7
  • EVCO EVK231 Refrigeration Controller

Heating/Cooling Controller 230VAC DIN

VAT included

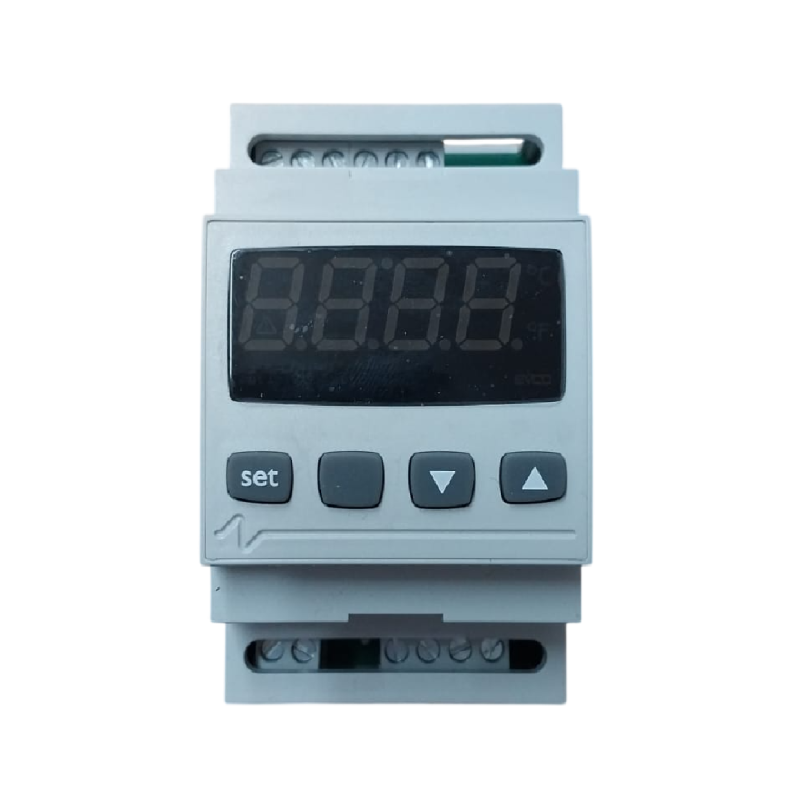

The EVCO EV6412M7 is a 230VAC DIN Rail mounted digital temperature controller, that accepts 0-10V, 4-20mA, PT100, PT1000, J/K Type Thermocouple Inputs with a LED display and is capable of heating, humidity and cooling applications.


The instrument has 1 x multi type (configurable) temperature input, 1 x 16A relay, and 1 x digital input.


Technical Details

Mounting: DIN Rail Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 90mm x 53mm x 61mm(H X W x D)

Display: 3-digit red LED with 1 decimal point

Power supply: 230VAC

Temperature range: Depends on Probe

Analogue Inputs: 1 (0-20mA, 4-20mA, 0-10V, 2-10V, PT100, PT1000, J/K Type)

Digital Input: 1 Door Switch Input

Relay Outputs: 1 16A 250VAC (N/O contact)

5 Items

Data sheet

Supply Voltage
Mounting Type
DIN Rail
Control Range
Heat OR Cool
No of Sensor Inputs
Sensor Types
Multiple Types - Configurable
No of Relay Outputs
Digital Inputs


EV6412M7 Manual

Download (550.03KB)
