Heating/Cooling Controller 230V

Heating/Cooling Controller 230V

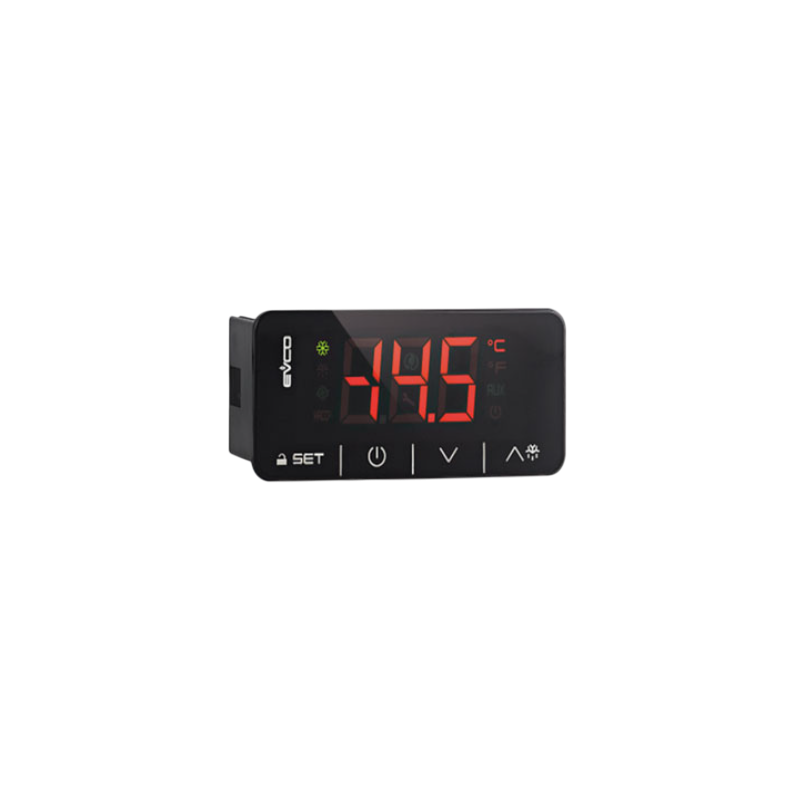

The EVCO EV3401M7 is a 230V digital temperature controller with a LED display and is capable of controlling medium temperature refrigeration and heating applications. Ideal for Baine Maries and Incubators. Configurable to accepts most types of probes (Not Supplied)

Volume discounts

Quantity Unit price You Save
5 R710.01 Up to R394.45
10 R670.57 Up to R1,183.35
20 R631.12 Up to R3,155.60
50 R591.68 Up to R9,861.25
100 R552.23 Up to R23,667.00

The instrument has 1 x cabinet temperature sensor, 1 x 30A (10A Resistive) compressor/element relay and 1 x digital door input.



Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 74 x 32mm (L X H)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply: 230 VAC 50hz 3VA

Temperature range:

Depending on Probe Type

Analogue Inputs: 2 (Door Switch or 2nd Probe)

Probe (NTC or PTC) Cabinet Temperature

Probe (NTC or PTC) Condenser Temperature

Digital Input: 1 Door Switch Input (Abvailable if 2nd Probe not used)

Relay Outputs:

Relay 1 for Compressor or heater element (10A Resistive) 250VAC (N/O contact)

Control Type: On/Off

Defrost: Compressor off cycle (Programmable)

Energy Saving Function: Yes

EVCO EV3401M7

Specific References

Download

EV3401 Manual

Download (314.59KB)
