Heating Controller 230V (96 x 96mm)

Heating Controller 230V (96 x 96mm)

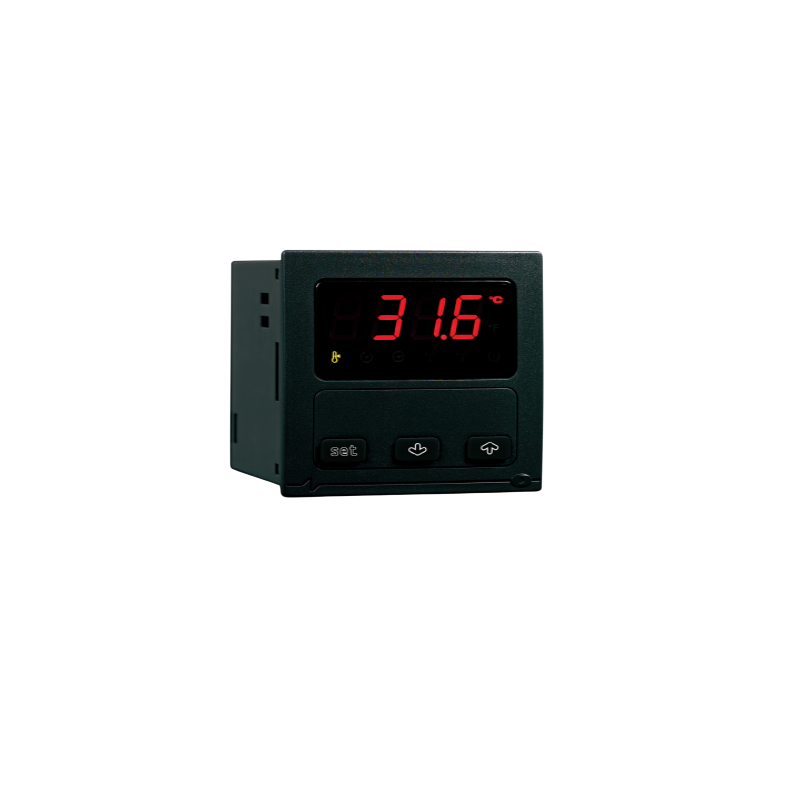

The EVCO EVK9411J6 is a 24VAC to 230V Digital Temperature Controller with a LED display and is capable of controlling high temperature applications. The controller accepts J or K Type thermocouple probes and has 1 relay output. The probe is not supplied with the controller.

Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 96 x 96 x 78mm (L x H x D)

Panel Cut out: 92 x 92mm

Display: 3-digit red LED with 1 decimal point

Power supply: 24VAC to 230 VAC

Temperature range:

According to Probe

Analogue Inputs: 1 Configurable

J or K Type Thermocouple

Relay Outputs:

Relay 1: Load 1 8A 250VAC (Change Over Contact)

Control Type: On/Off

EVCO EVK9411J6

Specific References

Download

EV9411J6

Download (523KB)
