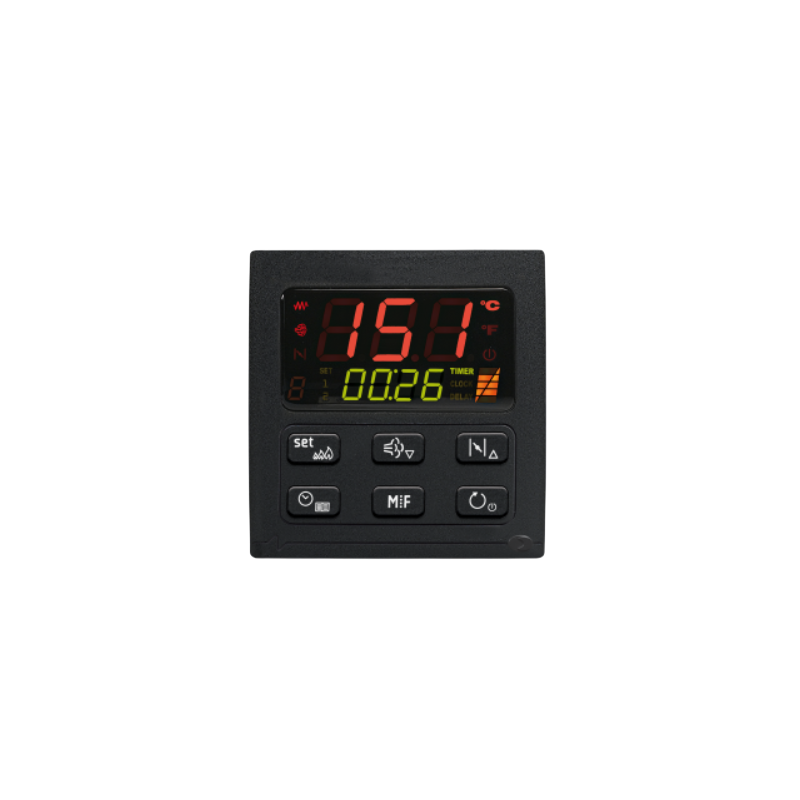

EV9313J9 is a thermotimer and controller for the management of different types of electric ovens. They are available in compact version, in the size 96 x 96 mm (3.779 x 3.779 in); the user interface consists of a double custom display (with function icons), six keys and is IP54 protection rated, for easy cleaning.

The EV9313J9 controller is designed to control electric ovens. This controller has 1 x J/K Thermocouple input, 1 x Multipurpose Digital Input, 3 X Output Relays for Element, Air Hole, Steam Injection, Light and Alarm Signals. The controller has a real time clock and the timer can be set for 7 days with up to 12 combinations.



Technical Details

Mounting:Panel Mount

Housing:Self Extinguishing Plastic

Frontal Protection Rating:IP54

Size: 96 x 96 x 78mm (L x H x D)

Panel Cut out:92 x 92mm

Display:3-digit + 4 digit LED + 1 digit LED with Symbols

Power supply:230 VAC 50hz 3VA

Temperature range:

-40 Deg C to +350 Deg C with a J Type Thermocouple

-40 Deg C to +350 Deg C with a K Type Thermocouple

Analogue Inputs:

1 x J/K Thermocouple (Chamber Probe)

Digital Inputs:

1 Muliti Purpose

Relay Outputs:

Relay 1: Element 8A 250VAC

Relay 2: Airhole or Light 8A 250VAC

Relay 3: Steam Injection/Cooking Timer 8A 250VAC

Relay 4: Buzzer

EVCO EV9313J9

Data sheet

Supply Voltage
24 - 230V
Mounting Type
Panel
Panel Cut Out Size
96 x 96mm
Control Range
Heating
No of Sensor Inputs
1
Sensor Types
J/K Type
No of Relay Outputs
3
Country of Manufacture
Italy
Application
Oven

Specific References

Download

EV9313J9 Oven Controller

Download (564.4k)
