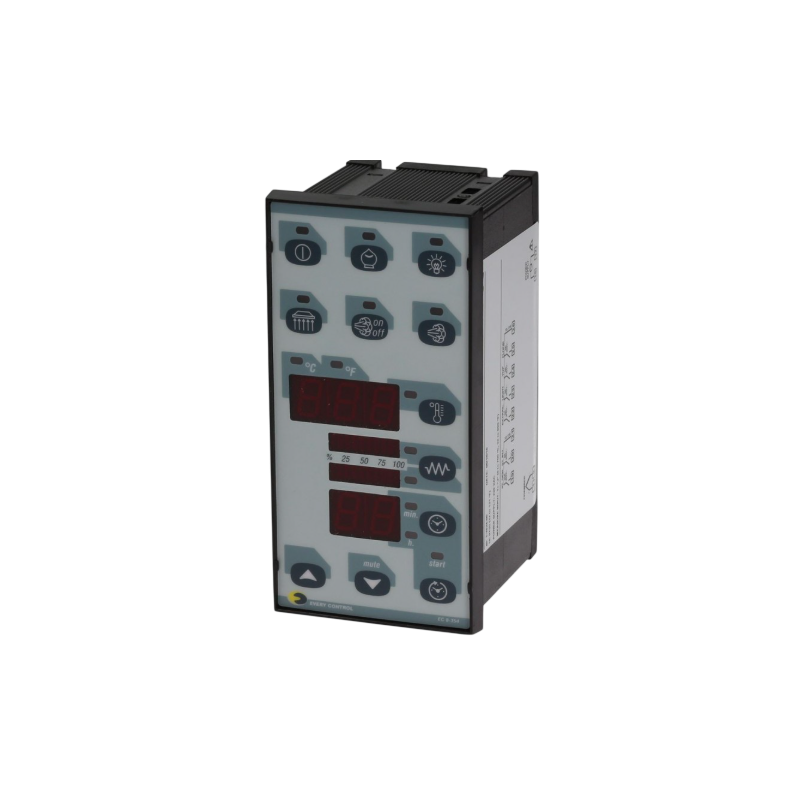

EVCO Oven Controller

R3,783.50
VAT included

EK356 is for the control of electric ovens and is easy to operate. Time and temperature is easily changed. They are available in compact version, in the size 72 x 144 mm  the user interface consists of a double custom display (with function icons) and is IP54 protection rated, for easy cleaning.

Quantity

The EK356 controller is designed to control electric ovens. This controller has 2 x J/K Thermocouple input, 1 x Multipurpose Digital Input, 6 X Output Relays for Bake Elements Regulation, Bake Time and Steam Injection.



Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP54

Size: 72 x 144mm (L x H)

Panel Cut out: 67 x 138mm

Display: 3-digit + 4 digit LED + 1 digit LED with Symbols

Power supply: 230 VAC 50hz 3VA

Temperature range:

-40 Deg C to +350 Deg C with a J Type Thermocouple

-40 Deg C to +350 Deg C with a K Type Thermocouple

Analogue Inputs:

2 x J/K Thermocouple (Top Probe and Bottom Probe)

Digital Inputs:

1 Muliti Purpose

Relay Outputs:

Relay 1: Top Element 8A 250VAC

Relay 2: Floor Element: 8A 250VAC

Relay 3: Steam Injection 8A 250VAC

Relay 4: Extractor 8A 250VAC

Relay 5: Steam Generator 10A 250VAC

Relay 6: Light 8A 250VAC

EK356AJ7
1 Item

Download

EK356AJ7 Manual

Download (409.32KB)
