Bluetooth Logger Controller
  • Bluetooth Logger Controller

Bluetooth Logger Controller

R2,990.00
VAT included

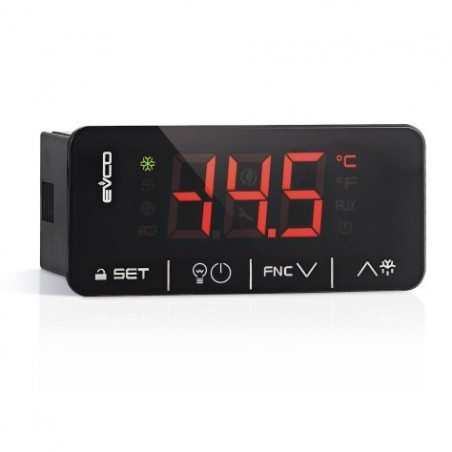

The EVCO EV3294N9ERXZ is a Panel Mounted Controller for Refrigeration Applications. It has 5 Relay Outputs, 2 Sensor Inputs and 1 Digital Input. The controller has a bluetooth transmitter and can be connected to the Evconnect App on your Smartphone. You will be able to access logs and settings from the App.

Quantity

Specifications:

Bluetooth Connectivity: YES

Housing: Self Extinguishing Grey

Frontal Protection Degree: IP65

Size: 75 x 33 x 85mm (L x H x D)

Panel Cut Out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power Supply: 115 - 230 VAC 50hz 3VA (Also available in 12/24VAC/DC)

Temperature Range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe

Analogue Inputs: 2 Probes (NTC or PTC)

Digital Inputs: 2 Multipurpose

Relay Outputs:

Relay 1: Compressor 16A 250VAC (NO contact)

Relay 2: Defrost 8A (hot gas or electric)

Relay 3: Evaporator fan 5A

Relay 4: Aux 5A

EVCO EV3294N9ERXZ
1 Item

Data sheet

Supply Voltage
100-230VAC
Mounting Type
Panel
Panel Cut Out Size
71 x 29mm
Control Range
Heat OR Cool
No of Sensor Inputs
2
Sensor Types
NTC/PTC
No of Relay Outputs
4
Digital Inputs
1
Country of Manufacture
Italy
Application
Remote Monitoring/Logging

Download

EV3294N9ERXZ Manual

Download (335.57KB)
