TLR D5 Universal A/C Controller - Vector Controls

2 Stage Cooling 230V

R1,938.58
VAT included

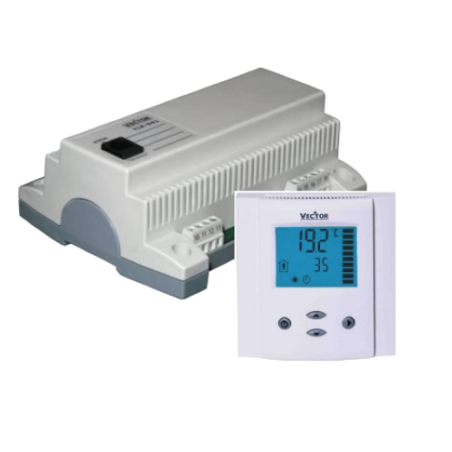

This universal configurable 2 stage controller consists of a base unit and a wall mounted controller. The controller has 1 fan speed relay, 2 cooling stage relays, reverse valve relay and alarm relay. The controller has a auto change over mode. The unit has an option of a infrared remote control (OPR-1) and is available in 24V or 230V

Quantity

Specifications:

Relay Digital Outputs

1 Fan (6A)

2 Stage One (6A)

3 Stage Two (6A)

4 Reverse Valve (6A)

5 Alarm (6A)

Multi Purpose Input:  Configurable for Temperature or Digital Input.

Voltage: 230VAC

Optional Extras: Infrared Remote Control (OPR-1)

Vector TLR-D5P-230
4 Items

Data sheet

Application
2 Compressors

Download

TLRD5P

Download (614.2KB)

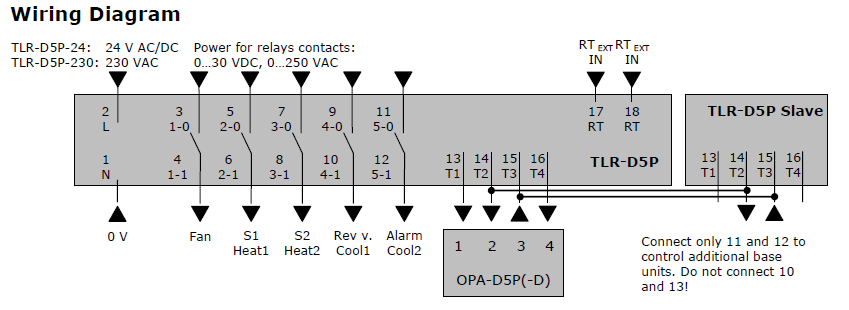

TLR-D5P Wiring Diagram

Download (27.07KB)
