A/C Control System with Wall Mounted Controller

R1,143.96
VAT included

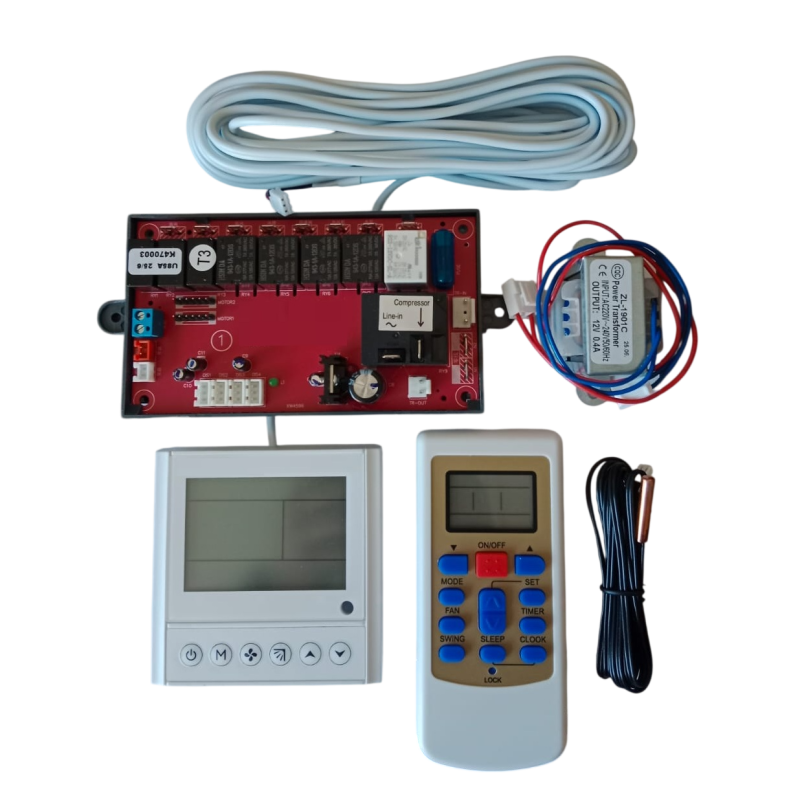

This universal air conditioner control system with a wall mounted controller and infra red remote control ideal for under ceiling, cassette and ducted hideaway type air conditioner units. The controller has 3 fan speed settings, swing socket, timer function, condensate pump output and many more features. Sold complete with remote control, PC board, sensors and transformer.

Quantity

Normally used on Under Ceiling Units, Cassettes and Hideaways

Features:

5 meter interconnecting cable

Auto Restart Function Selectable ON or OFF

Digital Inputs (Selectable)

High/ Low Pressure

Float Switch for Condensate Pump

3 Fan speeds

Condensate Drain pump output

2 temperature sensors (Return Air and Pipe)

5 Function modes

On/Off timer

Sleep function

Stable temperature control

Swing function

Compressor start delay

2 x AAA batteries

Easy to operate remote

No additional relays needed for heat pumps

Condenser fan controlled separately

Size of PC board: 140mm x 80mm

Compressor relay rated at 30 amps

110/220 Volt input

CS U85A
10 Items

Data sheet

Application
In Ceiling Hideaway
Midwall Split 18 000btu +
Under Ceiling Unit

Download

CS85A Manual

Download (689.94KB)

CS85A Wiring Diagram

Download (592.36KB)
