TLR D5 230V Universal A/C Controller

R2,027.45
VAT included

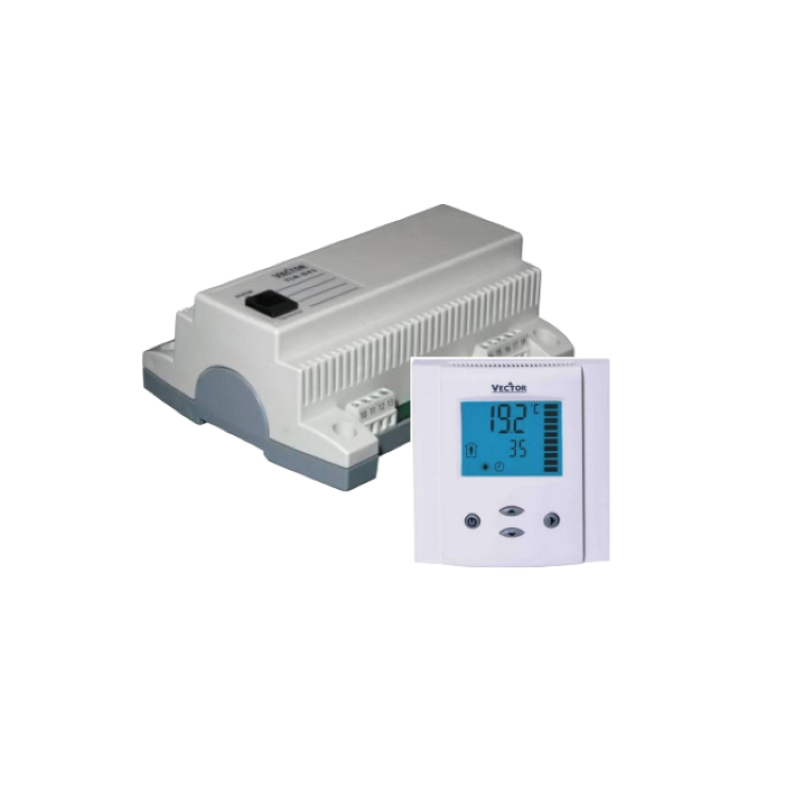

This universal fully configurable A/C controller  consists of a base unit and a wall mounted controller. The controller has 3 fan speed relays as well as a heating and cooling signal which is configurable for different combinations. The controller has a auto change over mode as well as heating or cooling. The unit has an option of a infrared remote control (OPR-1) and is available in 24V or 230V

Quantity

This controller can be set up to control a group of up to 8 unit from one wall mounted controller.

Specifications:

Relay Digital Outputs: 5 (3 Evaporator Fan, 1 Heating, 1 Cooling)

Sensor Input: Room Temperature.

Voltage: 230VAC

Optional Extras: Infrared Remote Control (OPR-1)

Password Protected User Rights (Ideal to lock temperature set points)

Master/Slave Mode

Vector TLR-D5-230
11 Items

Data sheet

Application
Fan Coil Unit
In Ceiling Hideaway

Download

Vector TLR-D5

Download (495.49KB)

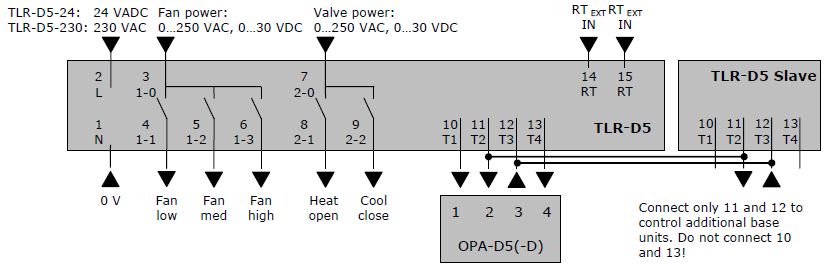

TLRD5 Wiring Diagram

Download (24.23KB)
