UO3C Universal A/C Control System Auto Restart
  • UO3C Universal A/C Control System Auto Restart

U12A Universal A/C Control System - Wall Mounted Control

R764.75
VAT included

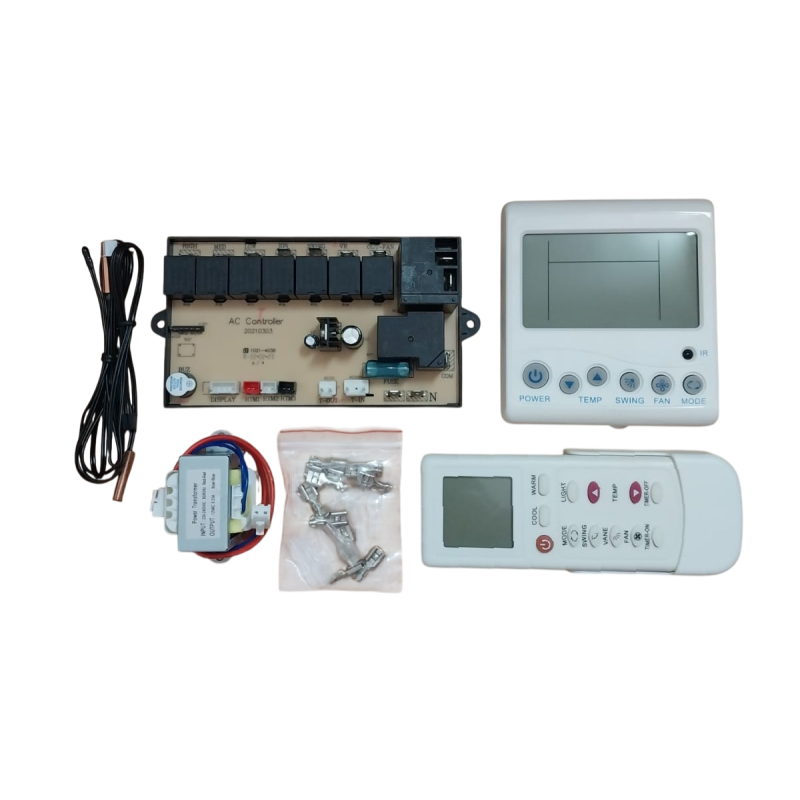

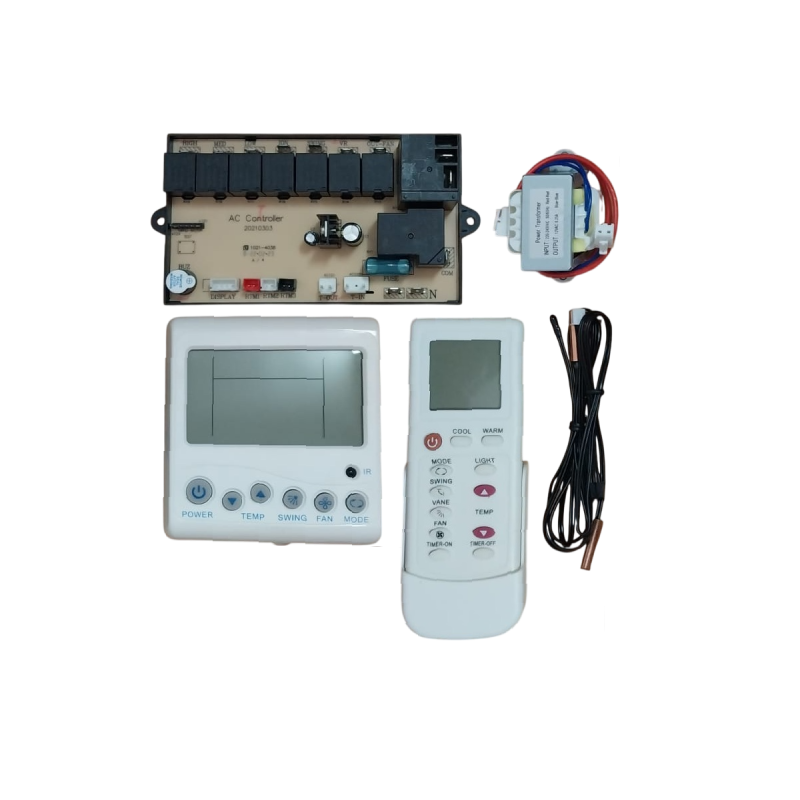

A universal air conditioner control system with an infra red remote control and a wall mounted controller. This unit has an auto restart function, 3 fan speed settings, swing socket, timer function, defrost heater output and many more features. Sold complete with remote control, PC board, sensors and transformer. INTERCONNECTING CABLE = 1M (CANT BE EXTENDED) Please look at the U85A (Click Here) if you need a longer cable.

Quantity

Normally used on Mid Wall Split Units and Under Ceiling Type Units

Features:

3 Fan speeds

Auto re-start function

2 temperature sensors

Outdoor coil sensor

Inter connecting cable between Wall Controller and PCB = 1 meter

5 Function modes

Additional optional heater element output

Ion Output, can be used as an auxiliary output

On/Off timer

Sleep function

Stable temperature control

Defrost sensor

Swing function

Compressor start delay

2 x AAA batteries

Easy to operate remote

No additional relays needed for heat pumps

Condenser fan controlled separately

Size of PC board 85mm x 150mm

Compressor relay rated at 30 amps

110/220 Volt input

U12A
9 Items

Data sheet

Application
Midwall Split 18 000btu +
