Fan Coil Controller (1 Valve) 0-10V

R1,713.50
VAT included

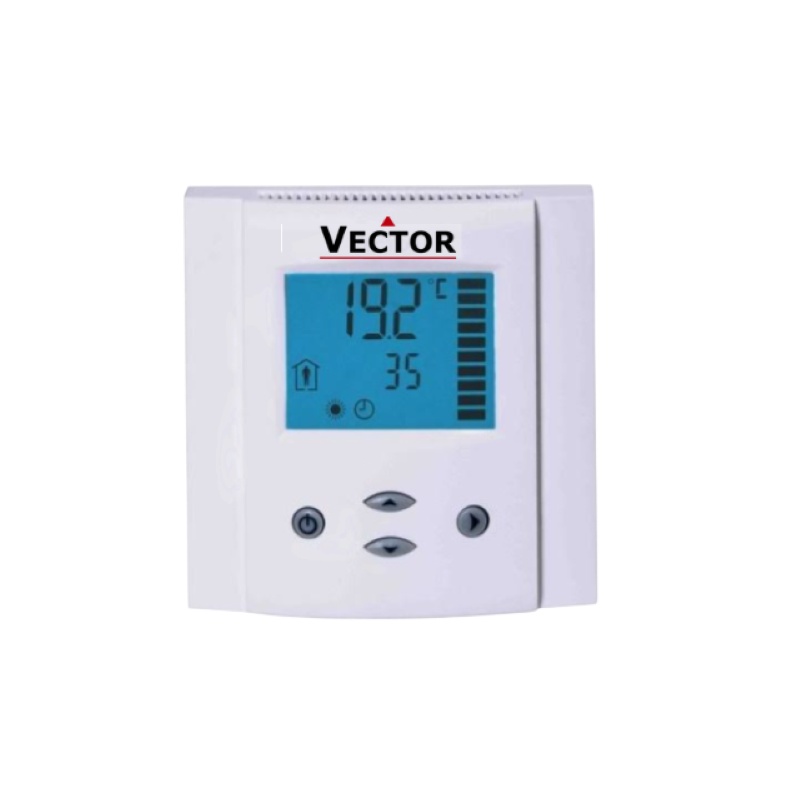

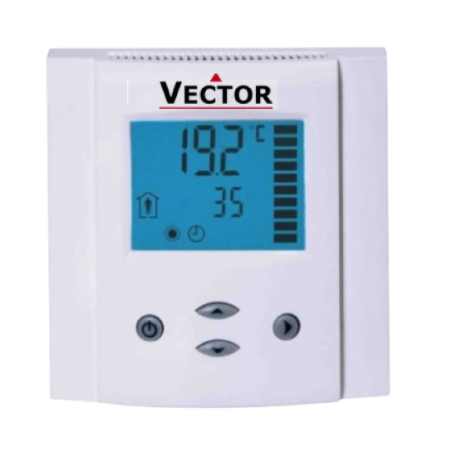

This universal configurable fan coil controller is wall flush mounted. The controller has 3 fan speed relays as well as a 0-10VDC output for systems with one valve. The controller has a auto change over mode and auto fan mode. The unit has an option of a infrared remote control (OPR-1) and is available in 24V or 230V

Quantity

Specifications:

Relays (Digital Outputs) 230VAC

Relay 1- 3: 2A Fan

Output: 0-10VDC Cooling/Heating Valve

Sensor Input: Room Temperature, built into controller.

Voltage: 230VAC

Front Face Size: 88 (H) x 88 (W) x 20mm (H)

Wall Cutout Size: 65 (H) x 50 (W) x 35mm (D)

Optional Extras: Infrared Remote Control (OPR-1)

Vector TLC3-FCR-M2-230
1 Item

Data sheet

Application
Fan Coil Unit

Download

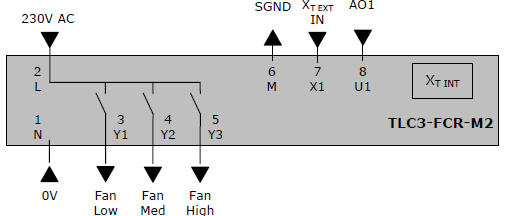

TLC3-FCR-M2 Wiring Diagram

Download (9.84KB)

TLC3-FCR Manual

Download (495.79KB)
