Vector TLC3-FCM-R2-T-230 EC Fans
R3,427.00
R1,713.50
Save 50%
VAT included

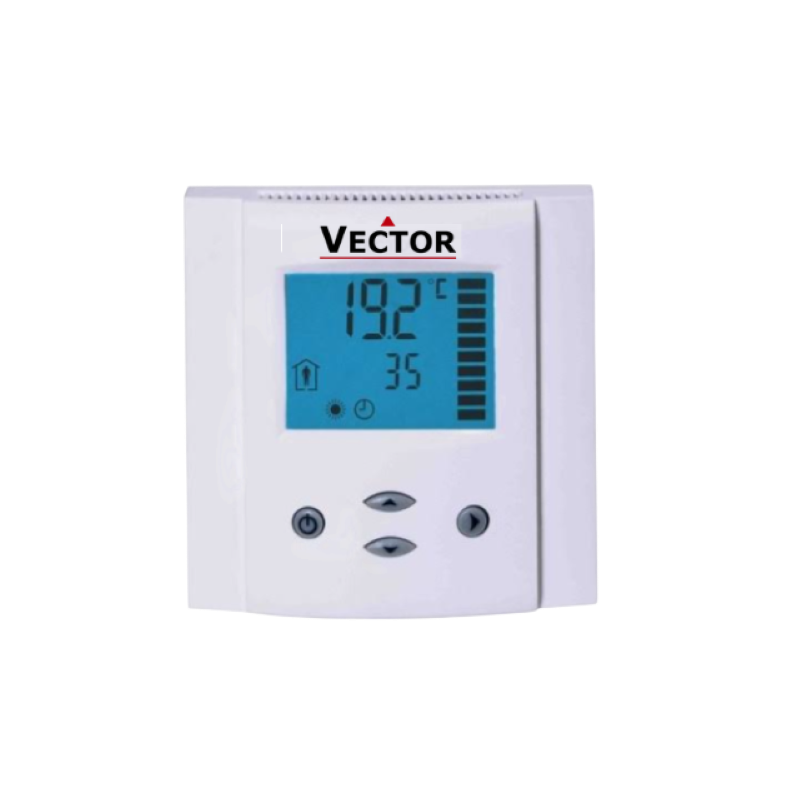

The Vector Fan Coil Controller is designed to work with Ziehl ECblue Variable Speed Fans. This configurable fan coil controller is wall flush mounted, 230V with 1 x internal temperature sensor & 1 external input (NTC) 2 DO (Relay) and 1 AO (0-10VDC) for the EC FAN
Specifications:
Relays (Digital Outputs) 230VAC
Relay 1- 2: 2A Heating/Cooling Valves
Output: Analogue 0-10VDC for EC Fan
Sensor Input: Room Temperature, built into controller.
Voltage: 230VAC
Front Face Size: 88 (H) x 88 (W) x 20mm (H)
Wall Cutout Size: 65 (H) x 50 (W) x 35mm (D)
Optional Extras: Infrared Remote Control (OPR-1)
Vector TLC3-FCM-R2-T-230
3 Items
Data sheet
- Mounting Type
- Surface
- Control Range
- Heat and Cool
- No of Relay Outputs
- 2
- Application
- Data Centre
Fan Coil Unit
Specific References
- MPN
- TLC3-FCM-R2-T-230
