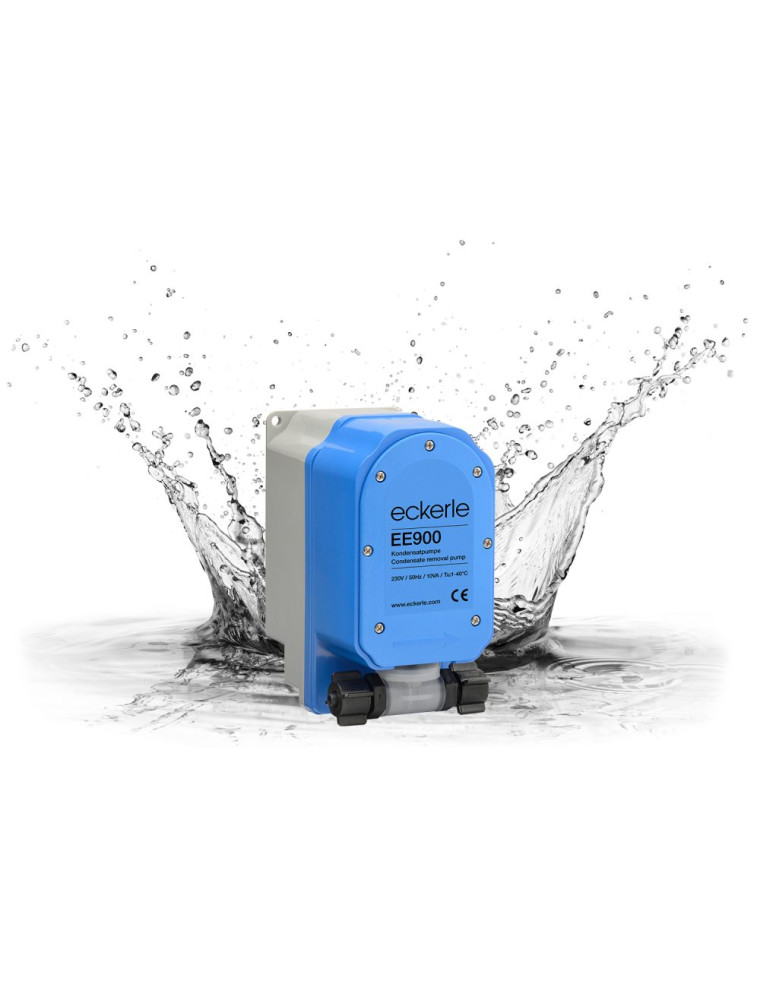

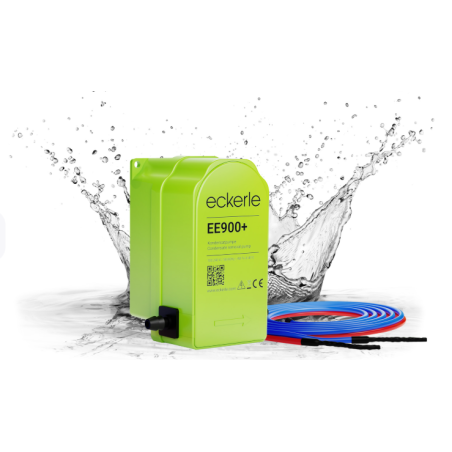

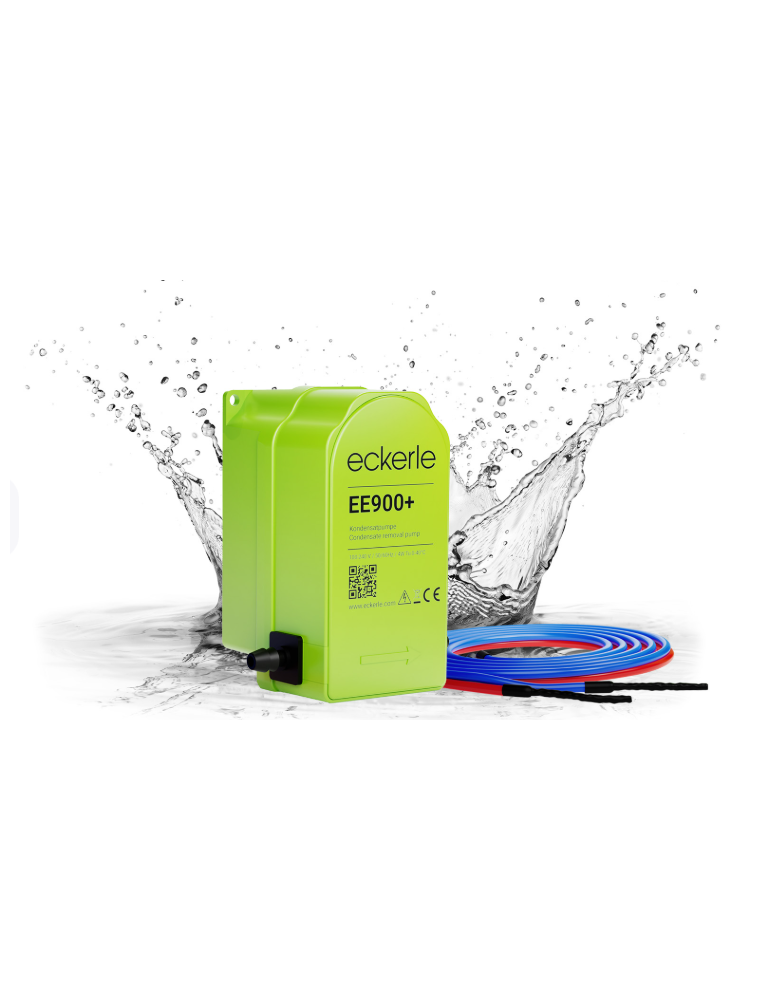

EE900 Super Silent Condensate Pump 24 000 Btu

R2,518.50
VAT included

The EE900+ is the world’s first condensate pump to feature both interfaces for temperature difference measurements (8 Kelvin) or a conventional float switch which is included as standard. This means that various different pump types do not have to be kept in stock, as is the case with comparable units. This pump combines two detection options in a single device. The whisper-quiet EE900+ is used to transport condensate especially in noise-sensitive environments such as hotel rooms or bedrooms. Unlike conventional peristaltic pumps, the tedious task of changing expensive hoses rendered obsolete since the EE900+ operates with a silent membrane pump

Quantity
Out-of-Stock

  • For air conditioners up to [kW] 20
  • Drive Membrane pump
  • Mains voltage & frequency 100-240V, 50/60Hz
  • Power consumption [W] Operation: 4 | Standby: 1,5
  • Max. flow rate [l/h] 20
  • Max. delivery height [m] 10
  • Max. suction height [m] 1,5
  • Pump unit L x W x H [mm] 102 x 54 x 62
  • Float switch L x W x H [mm] 82 x 39 x 39
  • Switch points float switch [mm] Alarm: max. 23 Start: 18 ±1 Stop: 14 ±1
  • Alarm switch 100-240V, 5A NC normally closed
  • Pressure, suction hose [mm] 6 x 1,5
  • Temperature sensor Length: 3 m Switch point: 8 Kelvin (∆T)
EE900

Download

Eckerle EE900+

Brochure

Download (1.31MB)
