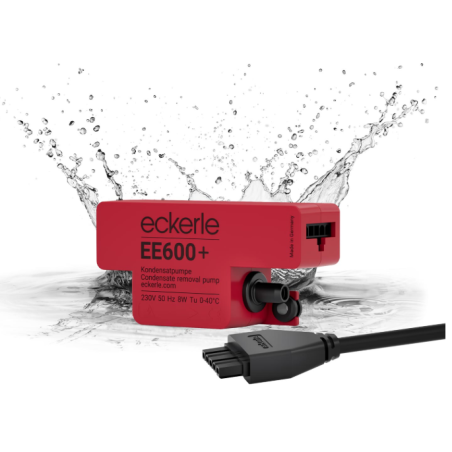

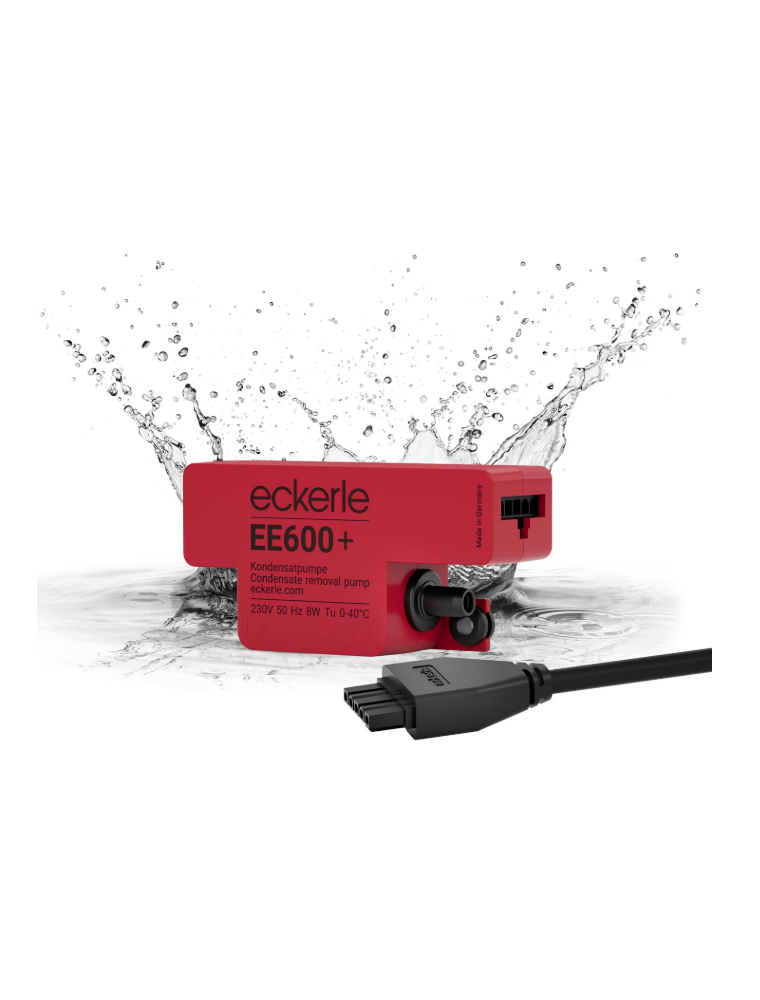

Mini split piston condensate drain pump with float switch for A/C units up to 7.5KW (24 000btu) 6 litre/hour, max suction 1.5m, head 6m. Now with easy connect push in terminals!
Usage:
This float type pump is mainly used in air conditioners with a little spare space inside, e.g. wall mounted mini split and ceiling air conditioner units. The small sensor can easily be adapted to fit the air conditioner´s condensate drain hose.
Description:
The EE 600 system consists of a pump unit and a separate 2-level float switch sensor. It comes with mounting accessories like pads of double-sided Scotch Tape to fix the floater and an anti-shock mount for the pump unit
Technical Data:
Pump unit (L x W x H): 77 x 32 x 50 mm
Electrical spec.: 230 V, 50/60 Hz, 18 VA
Sensor unit (L x W x H): 82 x 39 x 39 mm
Max. flow rate: 6 l/h
Max. delivery height: 6 m
Max. suction height: 1.5 m
Start: max. 18 ± 2 mm*
Stop: max. 14 ± 2 mm*
*Dimensions specified from the mounting surface of the sensor/ floater
