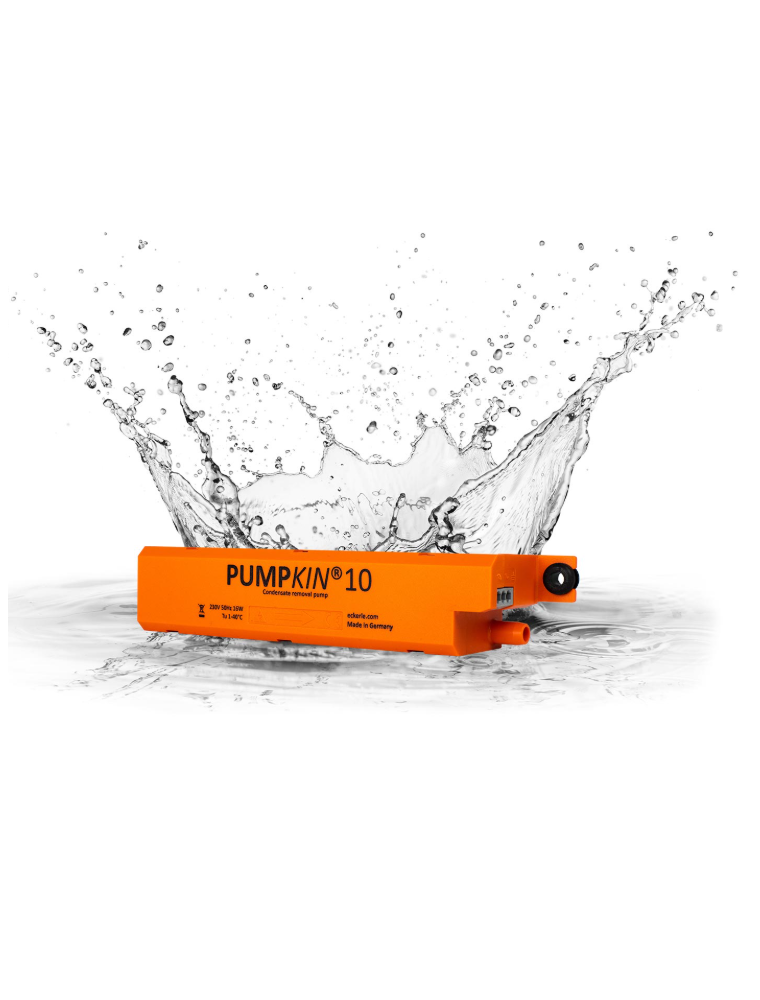

PUMPKIN10 - Slim Line Condensate Pump

R994.75
VAT included

Mini split piston condensate drain pump with float switch for A/C units up to 10KW (34 000btu) 9 litre/hour, max suction 1.5m, head 10m.

Quantity
Out-of-Stock

Usage:

This float type pump is mainly used in air conditioners with a little spare space inside, e.g. wall mounted mini split and ceiling air conditioner units. The small sensor can easily be adapted to fit the air conditioner´s condensate drain hose.



Description:

Mini split piston condensate drain pump with float switch for A/C units up to 10KW (34 000btu) 9 litre/hour, max suction 1.5m, head 10m.



Technical Data:

For air conditioning units up to (kW) 10
Pump module (L x W x H in mm) 165 × 33 × 33
Electrical data 230V, 50/60 Hz
Power consumption in Standby mode (W) Operation 15, Standby 1
Float module (L x W x H in mm) 82 × 39 × 39
Max. delivery volume (l/h) 9
Max. delivery height (m) 10
Max. suction height (m) 1,5



*Dimensions specified from the mounting surface of the sensor/ floater

Pumpkin10

Data sheet

Maximum Pumping Capacity
10l/h
Maximum Delivery Height
6m
Maximum A/C Size
34 000btu
Pump Type
Mini Split - Piston

Download

Pumpkin 10 Brochure

Download (1.53MB)
