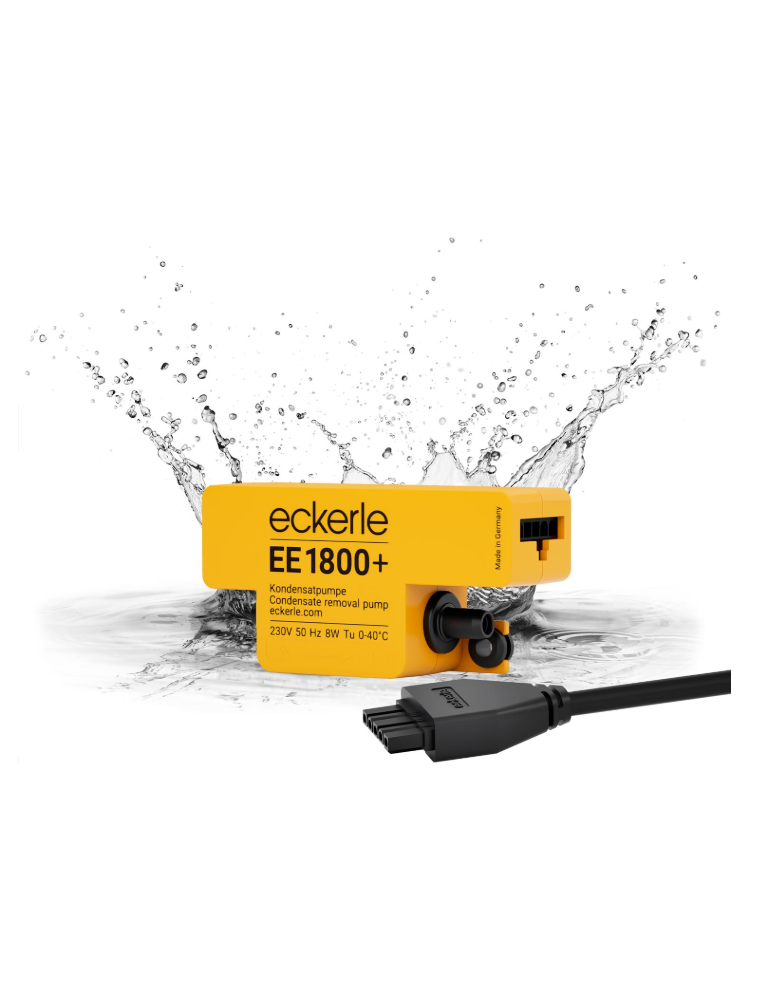

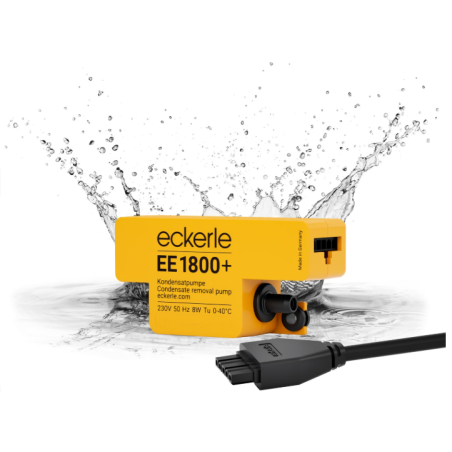

Mini split piston condensate drain pump with a separate 3 level float switch and alarm contact for A/C units up to 20KW (68 000btu) Max flow 18 litre/hour, max suction 2.5m, max head 10m.
Usage:
This float type pump is mainly used in air conditioners with limited space eg: wall mounted mini split and ceiling air conditioner units. The small sensor unit can easily be adapted to the air conditioner´s condesate drain hose.
Description:
The EE 1800 system consists of a pump unit and a separate 3-level float switch sensor. Beside the on/off function the system offers a high level, potential free NO / NC alarm switch (230 V, 8 A ohmic load)
Technical Data:
Pump unit: (L x W x H) 77 x 35 x 62 mm
Electrical spec.: 230 V, 50/60 Hz, 18 VA
Sensor unit: (L x W x H) 82 x 39 x 39 mm
Max flow rate: 18 l/h
Max delivery height: 10 m
Max suction height: 2.5 m
