Usage:
This compact unit with an integrated float switch is designed to be used inside devices equipped only with a condensate collecting tank such as fan convectors, cabinet models, built-in units and water collection consoles.
Description:

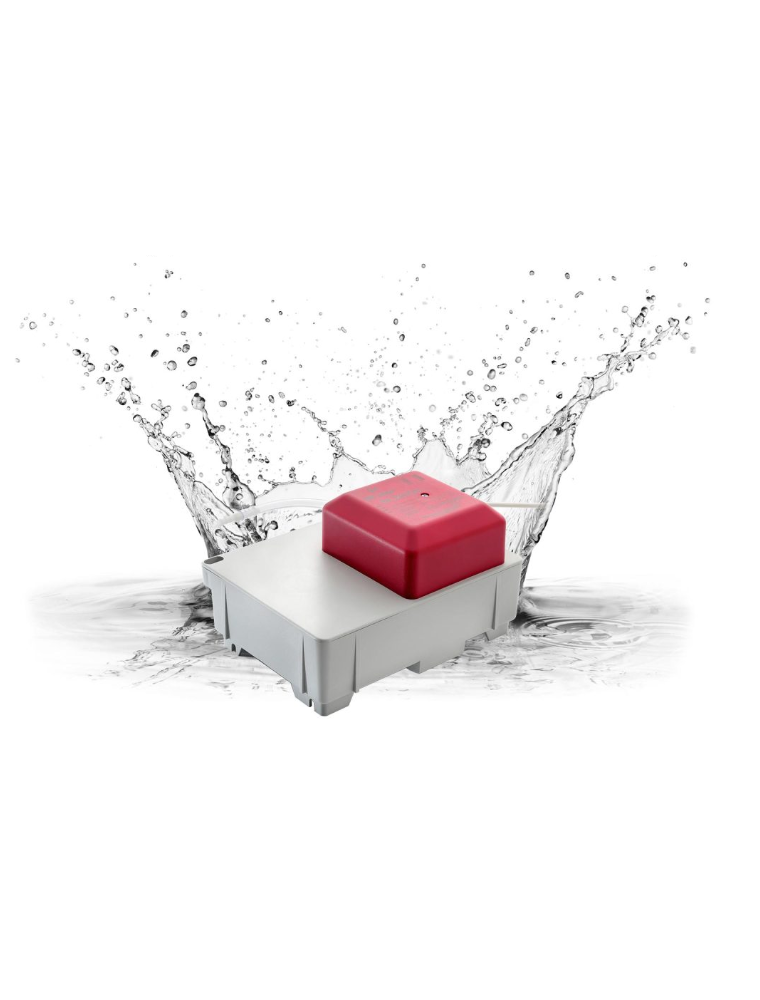

The EE1650 pump is equipped with 2 separately operating float switches. The working float switch turns the pump on and off depending on the filling level (with run-on time). The function of the alarm float switch is to isolate the break contact element
Technical Data:
Pump unit (L x W x H): 244 x 174 x144 mm
Electrical spec.: 230 V, 50/60 Hz, 40 VA
Max flow rate: 32 l/h
Max delivery height: 15 m
Tank capacity: 2 litre
Alarm switch: 230 V, 8 A (ohmic load) NO / NC (normally open / normally closed)
Alarm: max. 53 mm* Start: 40 ± 2 mm* Stop: 30 ± 2 mm*
*Dimensions specified from the mounting surface
