Heating/Cooling Controller 12VAC/DC

Heating/Cooling Controller 12VAC/DC

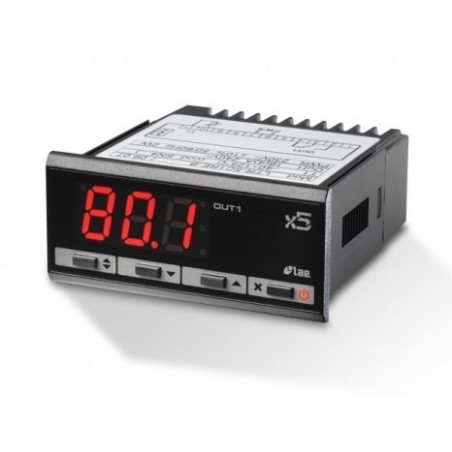

The LAE LTR-5CSRD is a 12VAC/DC digital temperature controller with a LED display and is capable of controlling refrigeration and heating applications.

Supplied with 1 x 2m NTC temperature probe.

The instrument has 1 x cabinet temperature sensor & 1 x 16A compressor/element relay.

Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP55

Size: 74 x 32mm (L X H)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply: 12VAC/DC

Temperature range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +70 Deg C with a NTC Probe

Analogue Inputs: 1 Probes (NTC or PTC)

Digital Input: 1 Door Switch Input

Relay Outputs:

Relay 1 for Compressor or heater element 16A 250VAC (N/O contact)

Control Type: On/Off or PID

Defrost: Off Cycle

LAE LTR-5CSRD

Data sheet

Supply Voltage
12VAC/DC
Mounting Type
Panel
Panel Cut Out Size
71 x 29mm
No of Sensor Inputs
1
Sensor Types
NTC/PTC
No of Relay Outputs
1

Specific References

Download

LTR-5CSRD Manual

Download (210k)
