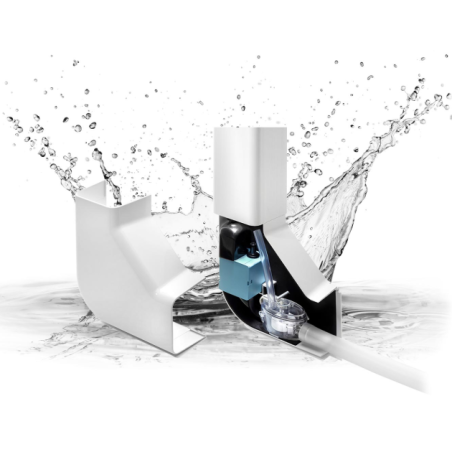

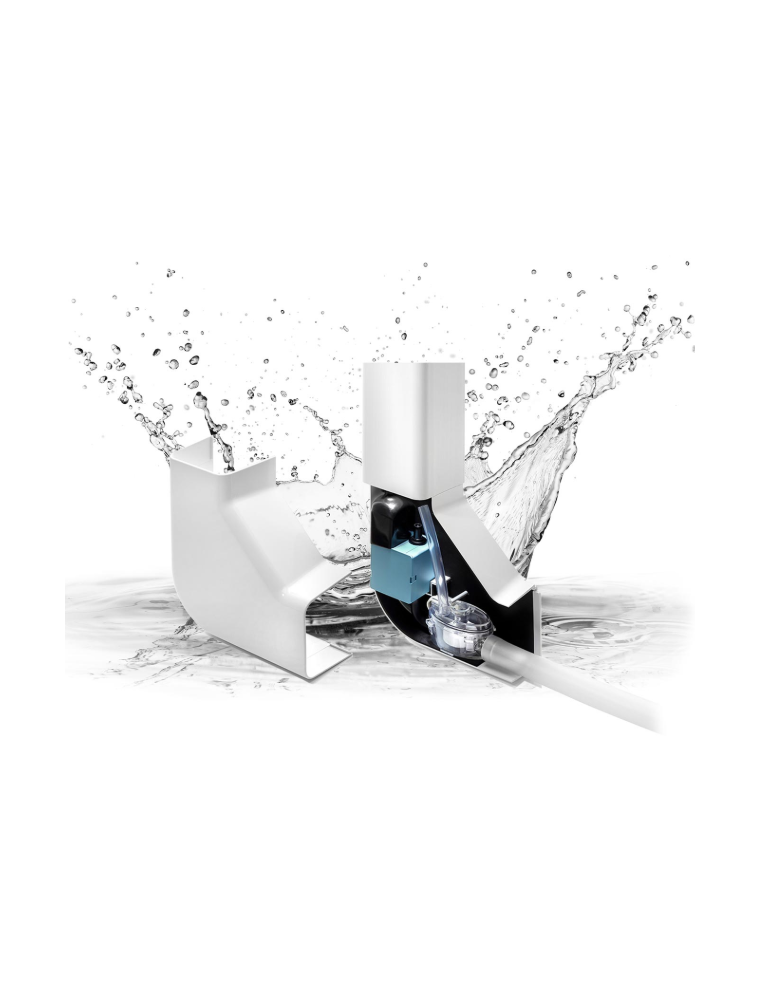

Piston condensate drain pump with float switch and alarm contact for a/c units up to 7.5kw (24 000btu) 8l/h, max head 6m. Complete with plastic trunking for neatly finished installations.
Usage:
The EE 1200 has particularly been designed for direct installation into the Eckerle-duct-system. Equal to the other volumetric systems of Eckerle the EE 1200 comes with a high quality Swissmade piston pump inside. These pumps were specially developed to deliver condensate water. They offer wide opening duck-bill-valves (non-sensitive against water borne contaminants) and furthermore they run remarkably quiet. These details arrange a pump system with a long-life-cycle. They provide a higher-than-average performance even at great delivery heights Description: The EE 1200 system consists of a pump unit and a separate 3-level float switch sensor and a length of plastic trunking. Beside the on/off function the system offers a high level, potential free NO / NC alarm switch (230 V, 8 A ohmic load). The system comes with mounting accessories like pads of double-sided Scotch Tape to fix the floater and an anti-shock mount for the pump unit
Technical Specs:
Pump unit (L x W x H): 78 x 42 x 46 mm
Electrical spec.: 230 V, 50 Hz, 18 VA
Sensor unit (L x W x H): 82 x 39 x 39 mm
Max. flow rate: 8 l/h
Max. delivery height: 6 m
Alarm switch: max. 230 V, 8 A (ohmic load) NO / NC (normally open / normally closed
Trunking length: 600mm
