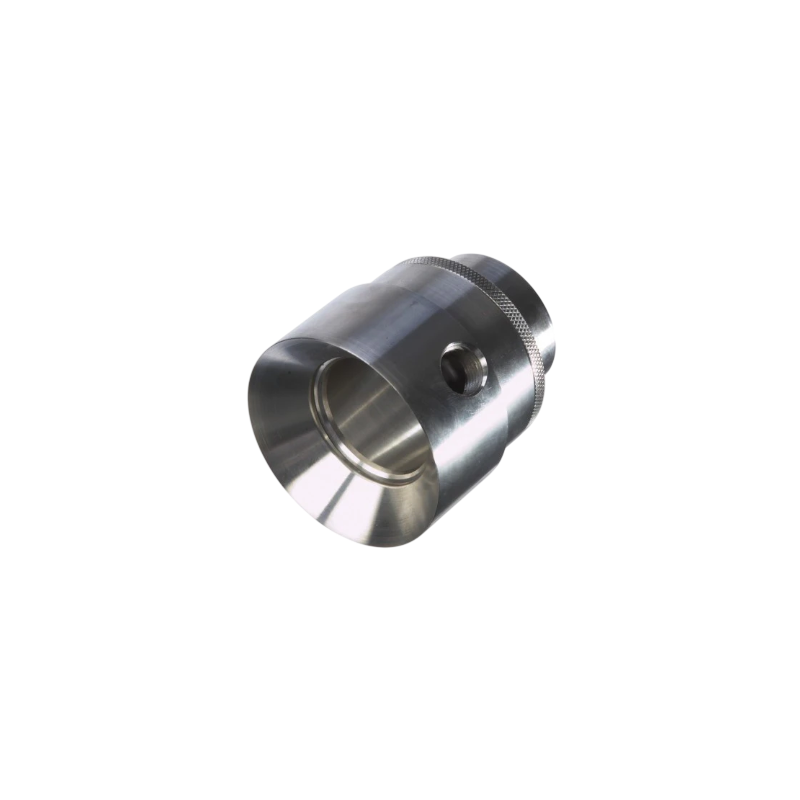

Air Amplifier Adjustable 1 1/4" Nexflow
  • Air Amplifier Adjustable 1 1/4" Nexflow
  • Air Amplifier Adjustable 1 1/4" Nexflow

Air Amplifier Air Mover Adjustable

The adjustable air amplifier from Nex Flow™ is used for a variety of applications. It is available in coated aluminum or stainless steel for high temperature or corrosive environments. The adjustable air amplifier is quiet, efficient and can intensify flows up to 17 times compared to the input of air consumption rates.

Quantity

The adjustable air amplifier from Nex Flow™ is used for a variety of applications. It is available in coated aluminum or stainless steel for high temperature or corrosive environments.

It is easy to install and maintain. Compressed air consumption and noise levels are reduced. The adjustable air amplifier draws energy from a small volume of compressed air to produce high velocity and volume as well as low-pressure output airflow.

The adjustable air amplifier is quiet, efficient and can intensify flows up to 17 times compared to the input of air consumption rates.

AVAILABLE IN SIZES FROM 1 1/4" to 4"

Outside Diameter
Of Outlet
Model
A
B
C
D
E
F
G
H
NPT*
1-1/4"
40001G
in
2.0
1.25
1.0
.98
1.38
1.88
2.88
1/4"
18 NPT
0
0
mm
50.8
31.8
25.4
24.9
35
47.8
73.2

2"
40002G
in
3.0
2.0
1.06
1.64
1.5
2.25
3.25
3/8"
18 NPT
0
0
mm
76.2
50.8
26.9
41.7
38
57.2
82.6

Adjustable Air Amplifier Gauged Ratios (approx.):

Model 40001G: 15:1
Model 40002G: 16:1

Air Booster and Air Pressure Amplifiers:

An Air Amplifier is also called an Air Booster. It converts pressure to flow and considered flow amplifier and not an air pressure amplifier.

Dust Collection System and Vent Smoke and Fumes:

The air amplifier is used as a dust collection system. It can vent smoke and fumes from all types of equipment.

Dry Air Coolers:

Air amplifiers can be used as dry air coolers by blowing amplified airflow into tubes of hot gas and air for cooling systems.

Part Ejection System and Chip Removal System and Part Drying System:

The air jets and nozzles are excellent as part of the ejection system, chip removal system, and part drying system when air knives or air amplifiers are not perfect.

4000

Download

Adjustable Air Amplifiers

Download (1.11MB)
