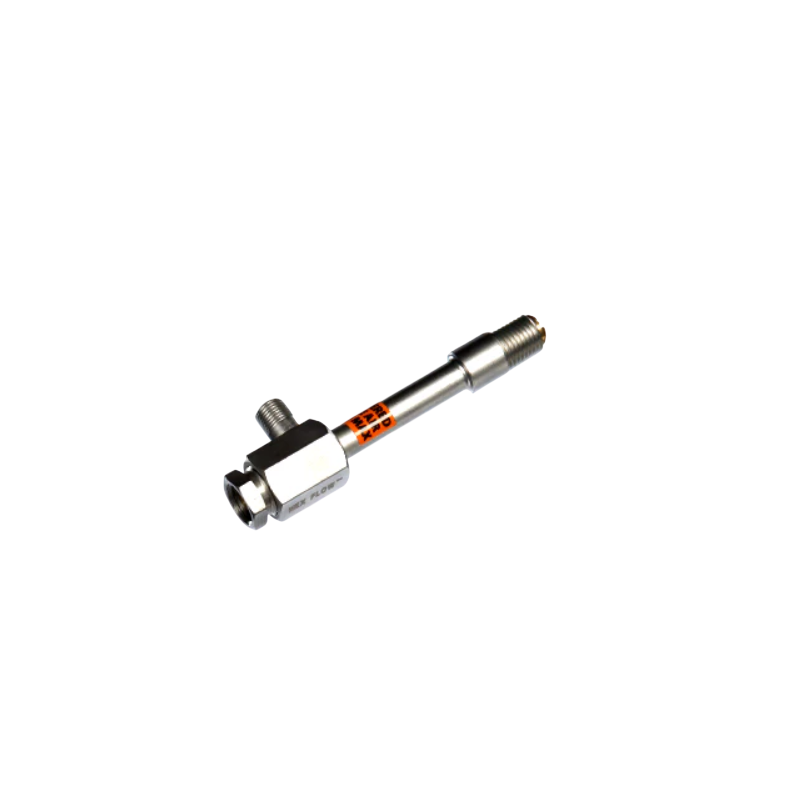

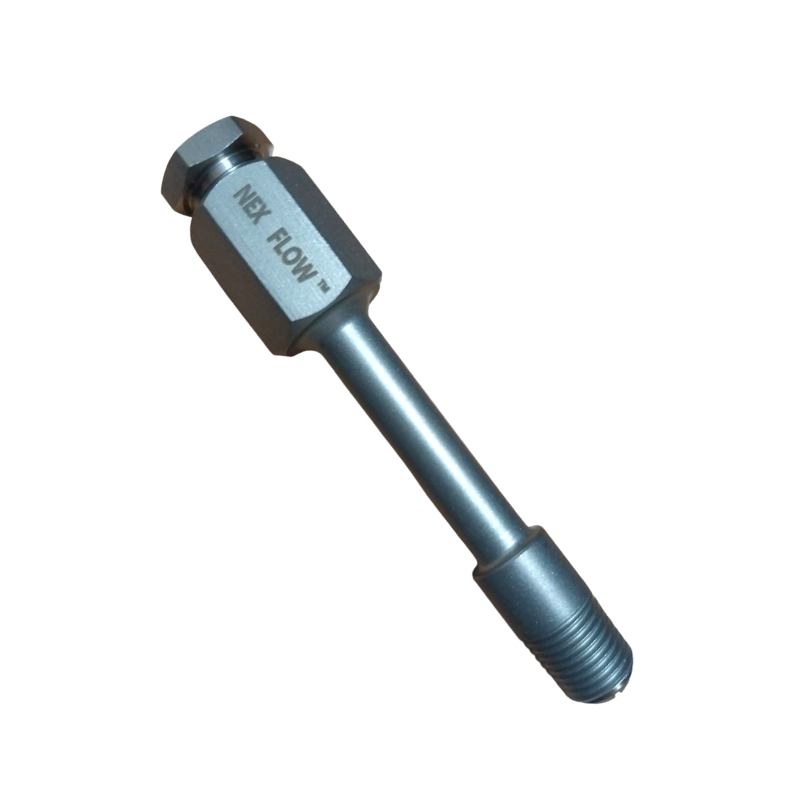

Small Vortex Tube 145 - 560btu/h
  • Small Vortex Tube 145 - 560btu/h

Small Vortex Tube 145 - 560btu/h

A Vortex Tube has no moving parts and will convert a compressed air supply into two streams – one hot and one cold. A Vortex tube can produce cold air down to -35°C and hot air up to +127°C. Small models available in sizes ranging from 145btu/h to 560btu/h. The Hot end muffler included.

Quantity

Compressed air is injected tangentially into the tube at sonic speed and creates a cyclone (Vortex) spinning at about one million revolutions per minute. Part of the air is forced to spin inward to the centre hole and travels up the long tube where a valve turns this spinning column (Vortex) of air inside itself. The inside column of air gives up its heat to the outside column. The cold air is then directed out the cold end of the Vortex Tube. The temperature and air flow are totally controllable by adjusting the valve at the hot end of the tube.



USES FOR VORTEX TUBES

• COOL MACHINING OPERATIONS

• COOL ELECTRICAL CABINETS

• COOL MOULD TOOLS

• COOL SEWING NEEDLES

• COOL-HOT OPERATIONS

• COOL WORKERS

• TEST THERMOSTATS

• COOL CCTV CAMERAS

• SET HOT GLUE OPERATIONS

• COOL SOLDERING

Ratings @ 100 PSIG (6.9 Bar)
Model No Btu/h WATTS SCFM SLPM
10002H 145 42 2 57
10004H 290 85 4 113
10008H 580 170 8 227
50002/4/8H

Download

Vortex Tubes

Download (1.78MB)
