Freezer Controller Box
  • Freezer Controller Box

Freezer Controller Box

R787.75
VAT included

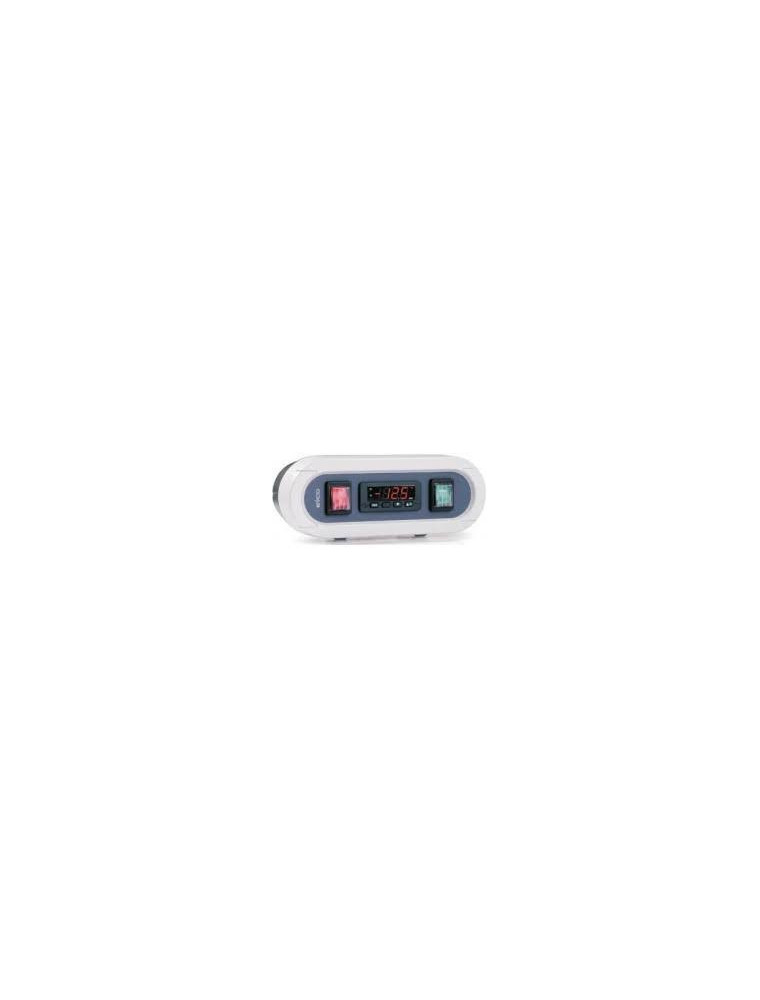

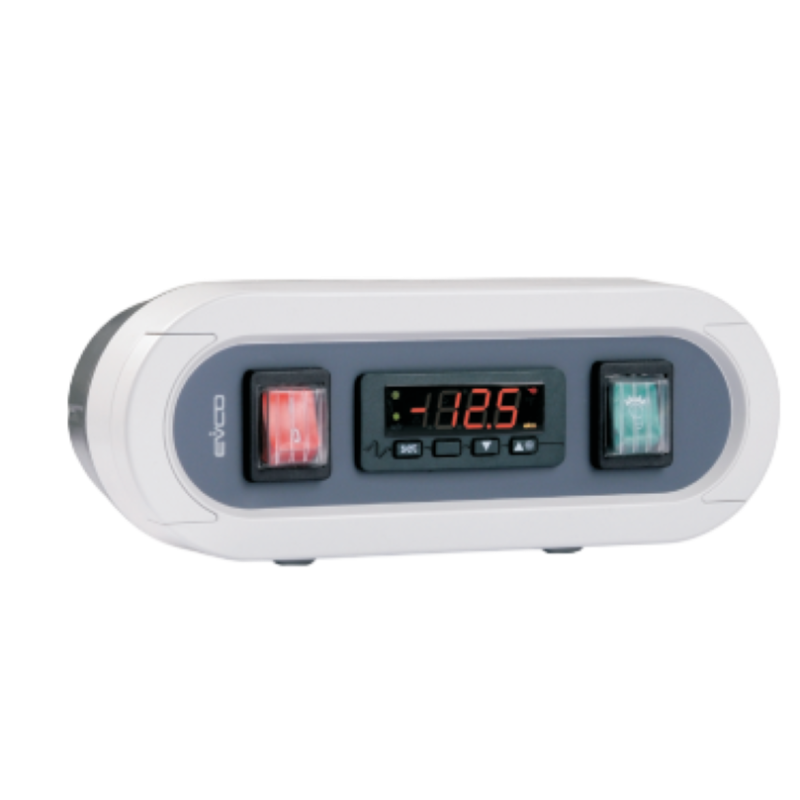

EVCO ASQKB33000 Freezer Controller in a plastic wall mounted enclosure with a ON/OFF switch and a light switch fitted in the enclosure

Quantity
Out-of-Stock

Specifications:

Housing: Self Extinguishing Grey

Mounting: Wall/Surface

Frontal Protection Degree: IP65

Display: 3-digit red LED with 1 decimal point

Power Supply: 230 VAC 50hz

Temperature Range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe (2 X Supplied)

Analogue Inputs: 2 Probes (NTC or PTC)

Digital Inputs: 1 Multipurpose

Relay Outputs:

Relay 1: Compressor 10A 250VAC (NO contact)

Relay 2: Defrost 8A (hot gas or electric)

Relay 3: Evaporator fan 8A

EVCO ASQKB33000

Data sheet

Supply Voltage
230VAC
Mounting Type
Surface
Control Range
Cool Only
No of Sensor Inputs
2
Sensor Types
NTC/PTC
No of Relay Outputs
3
Digital Inputs
1
Country of Manufacture
Italy
