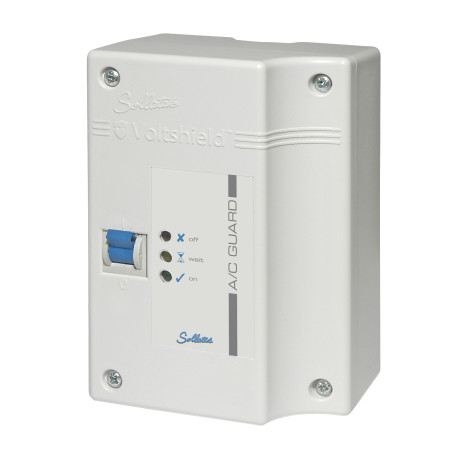

Appliances such as air-conditioning and refrigeration units are particularly vulnerable to damage caused by low voltage ‘brownouts’. With the A/C Guard, your equipment is protected against all power fluctuations: over-voltage as well as low voltage, spikes, surges, power back surges and power fluctuations. Part of Sollatek’s highly versatile Voltshield Range which uses the Sollatek Switcher technology, the A/C Guard switches off the air-conditioner instantly when a power problem occurs, reconnecting it only once the mains supply has stabilised.
Over & Under Voltage Protection for Air Conditioners, Fridges & Freezers
Protect against
Overload
High voltage
Low voltage
Spikes/surges
Powerback surges
Ideal for
Air conditioners
Large fridge/freezer
Max power: 20A
Wait time: 4 minutes intelligent time delay
Simple installation – complete peace of mind The A/C Guard is easily installed by an electrician and suitable for use with all air-conditioners, including split units, as well as industrial refrigeration equipment. Once it has been directly wired between the mains and your appliance, the A/C Guard provides complete protection automatically. Choose between 16, 20 or 25Amp models to match the rating of your air conditioner or load.
The A/C Guard’s Automatic Voltage Switcher functions protect against:
Low voltage
High voltage
Power-back surges
Power fluctuations
Surges/Spikes
It features a start up delay of about 4 minutes to prevent frequent switching on and off during fluctuations. The A/C Guard has a built-in microprocessor which adds the advanced feature TimeSave™ to save on down time. TimeSave™ means that when the mains returns to normal after any event, the A/C Guard checks the duration of the OFF time. If the unit has been off for more than 4 minutes then it will switch the air-conditioner on within 10 seconds rather than the standard 4 minutes. If however, the unit has been off for less than 4 minutes, the A/C Guard will ensure that it will remain off up to 4 minutes and then restarts automatically.
Circuit breaker function An integral circuit breaker enhances the protection offered by the A/C Guard. If a short circuit or over-load occurs, the circuit breaker detects the fault and the air conditioner is safely disconnected. To resume operation, simply switch the A/C Guard circuit breaker on again, assuming the cause of the overload has been removed. The air conditioner will restart automatically after an intelligent time delay.
Specification
Max power
20 amps
Wait time
4 minutes intelligent time delay
Ideal for
Air conditioners, large freezers
Tips
Rated at up to 25A for use with air conditioners up to 44,000BTU Direct wiring adds security for installation
Appliances such as air-conditioning and refrigeration units are particularly vulnerable to damage caused by low voltage ‘brownouts’. With the A/C Guard, your equipment is protected against all power fluctuations: over-voltage as well as low voltage, spikes, surges, power back surges and power fluctuations. Part of Sollatek’s highly versatile Voltshield Range which uses the Sollatek Switcher technology, the A/C Guard switches off the air-conditioner instantly when a power problem occurs, reconnecting it only once the mains supply has stabilised.
