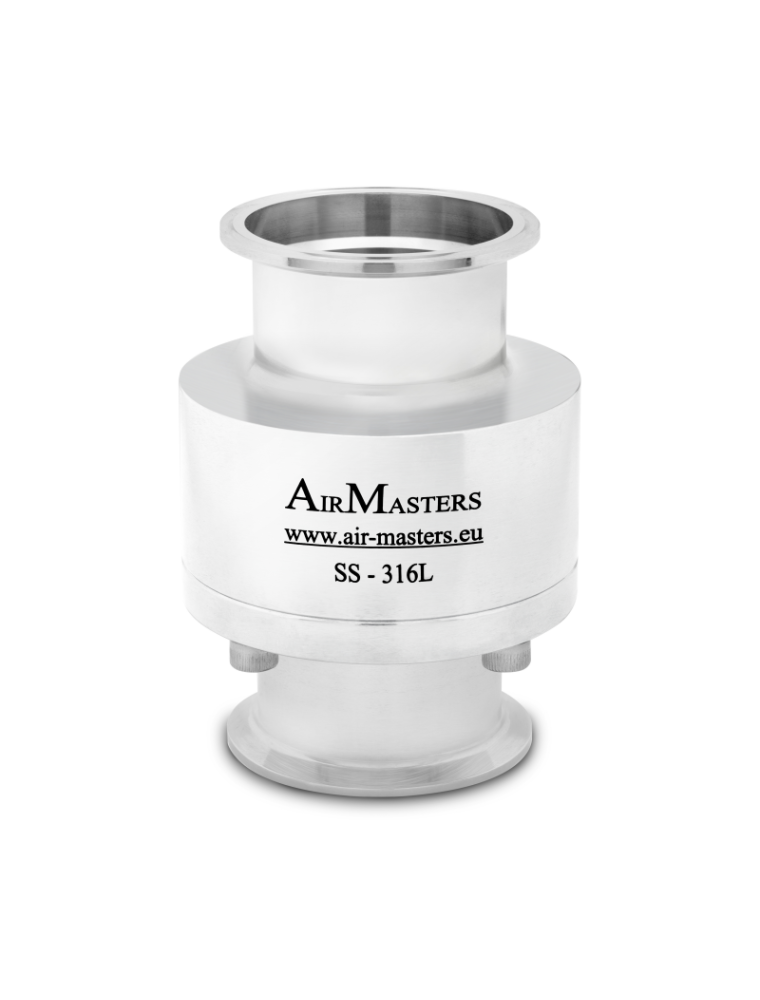

High Temperature 316L Stainless Steel With Sanitary Flange AIR-CONV01SAN-316L

R0.00
VAT included

Air Conveyors Pneumatic Conveying Systems with sanitary flange are available in stainless steel and in high temperature stainless steel for high temperature applications. Note: All our stainless steel high temperature units are rated to 1200ºF (649ºC).

Special materials can be utilized for unique applications. If greater conveying force is required the conveying “generator” can be machined for higher capacities.

Common applications include hopper loading (resin in the plastic industry, bottle caps in bottling), material conveying of all sorts, waste and trim removal, transferring parts from one location to another, chip removal, tensioning fiber, and in filling operations.

Quantity
Out-of-Stock

Material

High Temperature Stainless Steel 316L

Air consumption at 5.5 bar / 79.7 PSI

14.5 SCFM (410 SLPM)

Internal diameter

19,1 mm / 0.75 in

External diameter

50,4 mm / 1.98 in

Connection type

Female 1/4” BSP/NPT

Vacuum inches

-12 kPa

HT-AIR-CONV01SAN-316L
