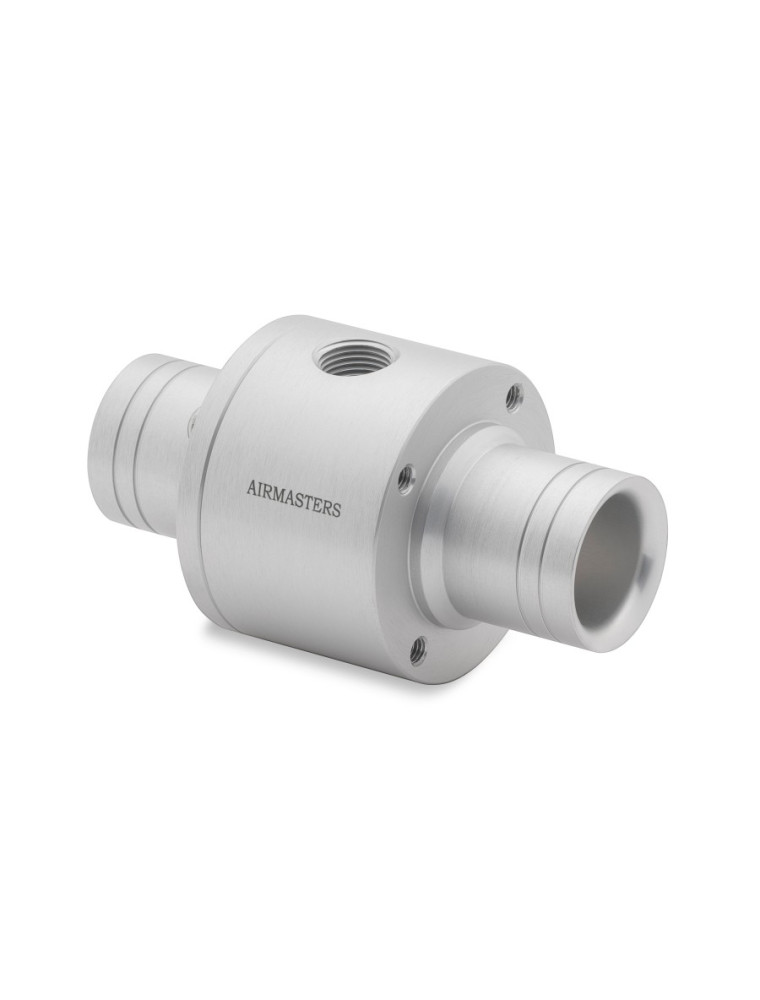

SS-AIR-CONV038 Air Conveyor

R0.00
VAT included

Air Conveyors –  Pneumatic Conveying Systems are available in coated Aluminium, stainless steel and in high temperature stainless steel for high temperature applications. Note: All our stainless steel high temperature units are rated to 1200ºF (649ºC)

Special materials can be utilized for unique applications. If greater conveying force is required the conveying “generator” can be machined for higher capacities.

Common applications include hopper loading (resin in the plastic industry, bottle caps in bottling), material conveying of all sorts, waste and trim removal, transferring parts from one location to another, chip removal, tensioning fiber, and in filling operations.

Quantity
Out-of-Stock

Material

Stainless Steel

Thread

Without thread

Air consumption at 5.5 bar / 79.7 PSI

5.3 SCFM (150 SLPM)

Internal diameter

5 mm / 0.2 in

External diameter

9,5 mm / 0.37 in

Connection type

Female 1/8"

Vacuum inches

-30.0 kPa

SS-AIR-CONV038
