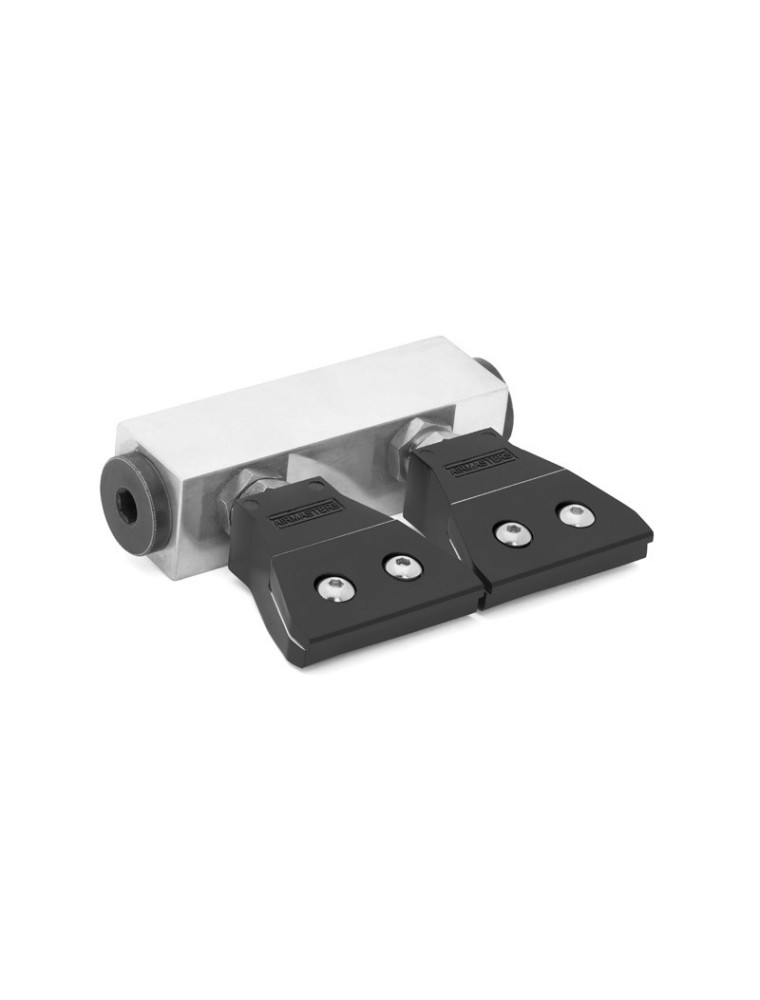

GM02 Air Knife Extra

R0.00
VAT included

Air Knives extra available with 2, 4 or 6 nozzles, hard anodized aluminum. The blowing force it is controlled by the thickness of the internal shims, it is enough to take shims out to reduce the blowing force or adjust it. Also air consumption and sound level can be adjusted very easily. Replace drilled pipes reducing dramatically noise level and air consumption.

The nozzles can be opened easy for cleaning and maintenance contrary to competition’s nozzles that most of the time get clogged .The shims inside the nozzles are made in stainless steel and provide a high resistance to mechanical wear.

The standard nozzle used for these air knives extra it is with 0.28” gap.

Quantity
Out-of-Stock

Material

Hardened anodized aluminum
Blowing force at 5 Bar / 72.5 PSI

41.72 OZ, 57.55 OZ, 77.33 OZ
Air consumption at 5 bar / 72.5 PSI

58 Nm³/h – 108Nm³/h – 115 Nm³/h / 36.09 SCFM – 67.21 SCFM – 71.57 SCFM
Sound level at 5 Bar / 72.5 PSI

82dB(A)
Shims

Stainless steel
Dimensions

3.94" x 3.23" x 0.98" (100 mm x 82 mm x 25 mm)
Connection type

Female
Back connection

3/8" x 1
Side connections

3/8" x 2
Blowing pattern

Flat
Max operating pressure

10 Bar / 145 PSI
