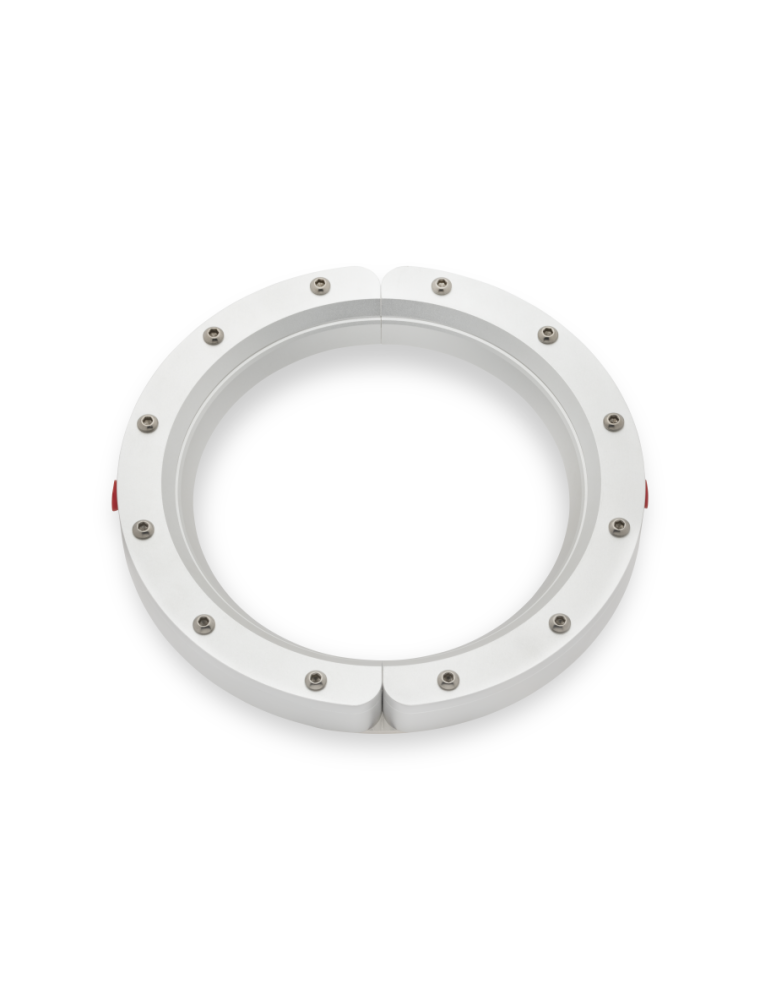

Stainless Steel 304 Air Wipe ØInt. 178mm

R0.00
VAT included

Air Wipe or  Circular Air Knife blow off, clean, cool and dry cables, pipes, extrusions, hoses, wires and ropes. Air Wipe or Circular Air Knife is easy to mount and maintain and reduces both compressed air consumption and noise levels. Air Wipe or Circular Air Knife produces a “laminar” flow of air along its 360º angle using the Coanda effect which “entrains” a large volume of air from the surrounding area along with the small amount of compressed air from the  Air Wipe or Circular Air Knife to produce an output flow up to 30 times. System payback on compressed air savings can be as soon as a few weeks in some applications.

Quantity
Out-of-Stock

Material

Stainless Steel 304

Air consumption at 5 bar / 72.5 PSI

130 Nm³/h / 80.9 SCFM

Air Amplification

30:1

Sound level at 5 Bar / 72.5 PSI

85dB(A)

Shims

Stainless steel

Dimensions

9.76" x 1.14" (248 mm x 29 mm)

Internal diameter

178 mm / 7.01 in

External diameter

248 mm / 9.76 in

Connection type

Female

Side connections

1/4" x 2

Blowing pattern

Circular

Max operating pressure

10 Bar / 145 PSI

SS304-AIR-AW07
