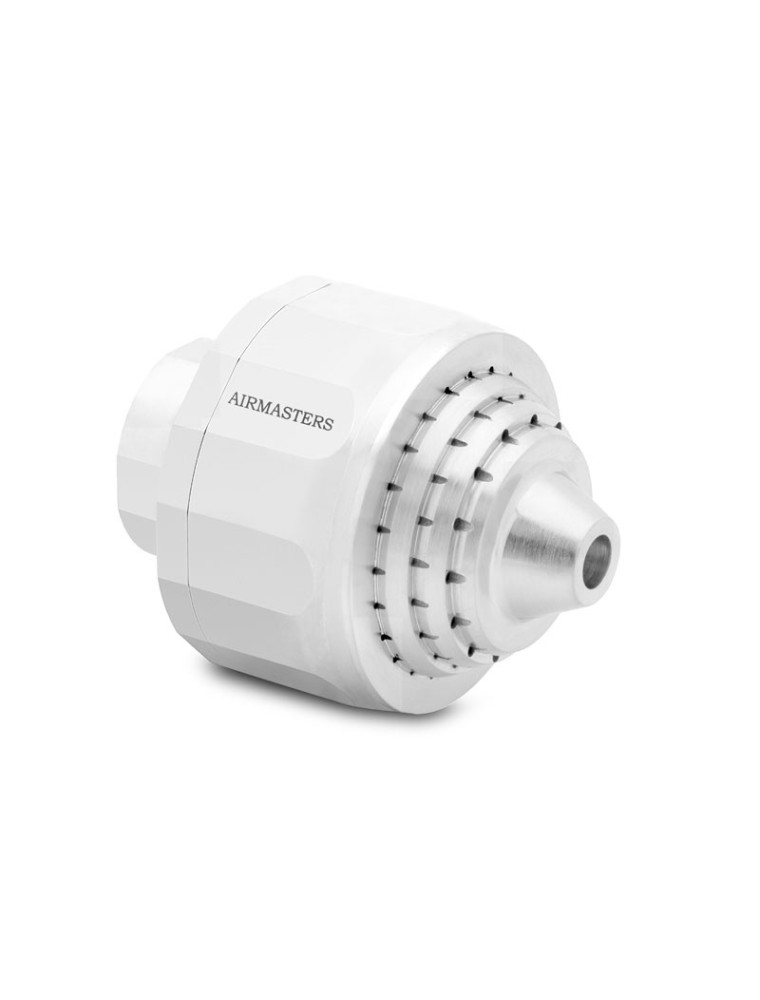

AIR-M123S Air Nozzle

R0.00
VAT included

Airmasters range of air nozzles  blow-off is the widest choice in the world!! Ideal where the blow-off requires technical sizing and where high noise level and consumption cause serious problems. Blowing, cleaning and sorting are only some examples of applications where our air nozzles are used. These air nozzles substitute open pipes of 2 mm to 25 mm allowing dramatic energy savings and a return on investment within a few weeks! Send us details of your current open pipe or in the case of a new application, discuss it with our technicians in order to receive a calculation of viable air savings Airmasters compressed air nozzles guarantee noise level reductions of over 50% compared to an open tube or a home manufactured device.

Quantity
Out-of-Stock

Material

Stainless steel

Blowing force at 5 Bar / 72.5 PSI

60.6 lbs

Air consumption at 5 bar / 72.5 PSI

1680 Nm3/h / 1046.73 SCFM

Sound level at 5 Bar / 72.5 PSI

110 dB(A)

Dimensions

130 mm x 100 mm / 5.12 in x 3.94 in

Connection type

Female 1 1/2" BSP

Blowing pattern

Wide

Max operating pressure

10 Bar / 145 PSI

Meets the OSHA directives

Yes

AIR-M123S

Download

AIR-M123S

Download (1.19MB)
