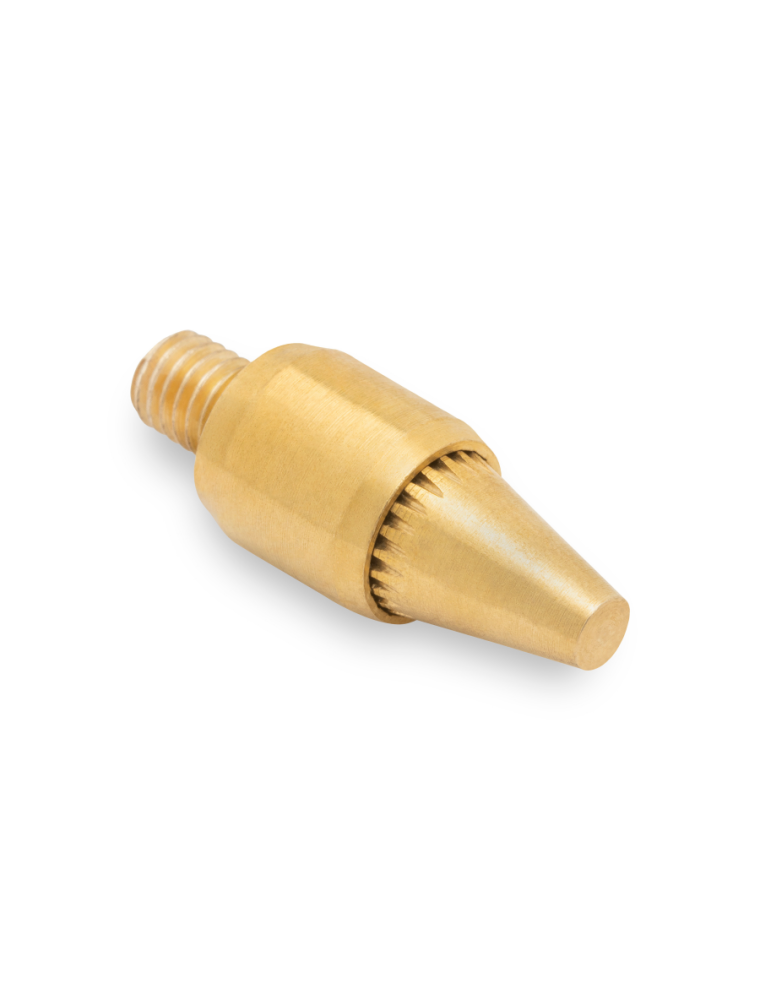

AIR-M09B Brass Air Nozzle

R0.00
VAT included

Airmasters range of air nozzles  blow-off is the widest choice in the world!! Ideal where the blow-off requires technical sizing and where high noise level and consumption cause serious problems. Blowing, cleaning and sorting are only some examples of applications where our air nozzles are used. These air nozzles substitute open pipes of 2 mm to 25 mm allowing dramatic energy savings and a return on investment within a few weeks! Send us details of your current open pipe or in the case of a new application, discuss it with our technicians in order to receive a calculation of viable air savings Airmasters compressed air nozzles guarantee noise level reductions of over 50% compared to an open tube or a home manufactured device.

Quantity
Out-of-Stock

Material

Brass
Blowing force at 5 Bar / 72.5 PSI

10.43 OZ
Air consumption at 5 bar / 72.5 PSI

8 Nm³/h / 4.98 SCFM
Air savings Nm³/h / SCFM/SLPM

9Nm³/h / 5.6 SCFM
Air Amplification

50:1
Sound level at 5 Bar / 72.5 PSI

74dB(A)
Noise reduction dB(A)

16dB(A)
Dimensions

Ø 0.37" x 0.98" (Ø 9.5 mm x 25 mm)
Connection type

Male Ø 0.2" x 0.03" (Male Ø 5 mm x 0.80 mm)
Blowing pattern

Concentrated
Replace open pipe

0.08-0.12" (2-3mm)
Max operating pressure

10 Bar / 145 PSI
Cost savings for 5 working days*

4,68 Euro
Meets the OSHA directives

Yes
BR-AIR-M09B

Download

AIR-M09B

Download (1.15MB)
