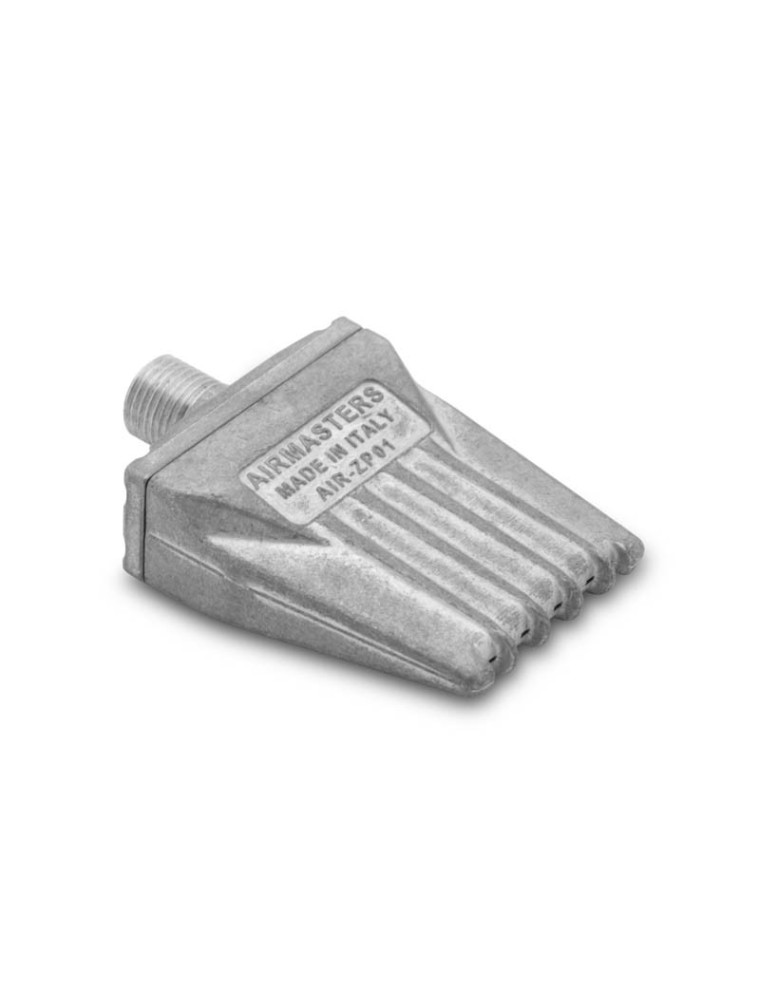

AIR-ZP01 Zinc Air Nozzle

R0.00
VAT included

Airmasters range of air nozzles  blow-off is the widest choice in the world!! Ideal where the blow-off requires technical sizing and where high noise level and consumption cause serious problems. Blowing, cleaning and sorting are only some examples of applications where our air nozzles are used. These air nozzles substitute open pipes of 2 mm to 25 mm allowing dramatic energy savings and a return on investment within a few weeks! Send us details of your current open pipe or in the case of a new application, discuss it with our technicians in order to receive a calculation of viable air savings Airmasters compressed air nozzles guarantee noise level reductions of over 50% compared to an open tube or a home manufactured device.

Quantity
Out-of-Stock

Blowing force at 5 Bar / 72.5 PSI

14.03 OZ

Air consumption at 5 bar / 72.5 PSI

21 Nm³/h / 12.329 SCFM

Sound level at 5 Bar / 72.5 PSI

69 dB(A)

Dimensions

36 mm x 43 mm x 14 mm / 1.42 in x 1.69 in x 0.55 in

Connection type

Male 1/8” BSP/NPT

Blowing pattern

Flat

Max operating pressure

10 Bar / 145 PSI

Meets the OSHA directives

Yes

Material

Zinc
