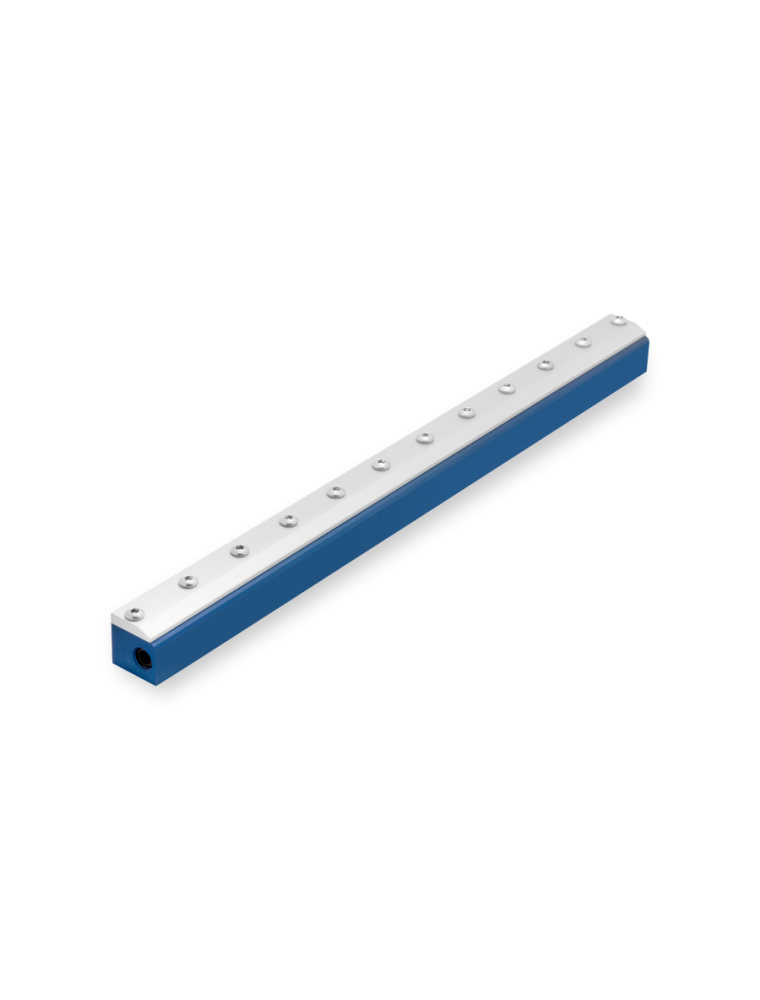

Standard Air Knife STD03-76mm

R0.00
VAT included

Standard Air Knife, Blow Off System is easy to mount and maintain to reduces both compressed air consumption

and noise levels. Produces a “laminar” flow of air along its length using the ”Coanda” effect which “entrains” a large

volume of air from the surrounding area along with a small amount of compressed air from the Air Knife that

produces an output flow up to 30 times the air consumed along with a 10 dBA noise reduction. System payback on

compressed air savings can be as soon as a few weeks in some applications.

Quantity
Out-of-Stock

Blowing force at 5 Bar - 1.9 N

Air consumption at 5 Bar - 16 Nm /h

Air Amplification - 30:1

Sound level at 5 Bar - 81dB(A)

Material - Aluminum

Shims - Stainless Steel

Dimensions - 762 mm x 31.8 mm x 31.3 mm

Connection type - Female

Back connection - 1/4" x 1

Blowing pattern - Flat

Velocity at 152mm - 50 m/s

Max operating pressure - 10 Bar

ALU-STD03-76mm

Download

Air knife STD03-76mm

Download (1.13MB)
