HT24 Temperature Humidity Controller

HT24 Temperature Humidity Controller

Combined Temperature and Humidity Digital Controller, Panel Mounted, 230V supplied complete with Wall Mounted Sensor. The Controller has 5 Relay outputs. Configurable to Heat or Cool and Humidify or De Humidify. If you require a Controller that will do both please look at the EVCO EVJ506N2

Specifications

Power Supply: 230VAC

Input: Temperature and Humidity Sensor (1.5m)

Setting Ranges: 5-95% RH / -20 - 60 Deg C

Relays: 5 x 5A Resistive Load

Relay 1: Alarm Relay

Relay 2: Humidify or Dehumidify

Relay 3: Heat or Cool

Relay 4/5: Timer

Protection Front Panel: IP65

Dimensions: 71mm (width) x 34.5mm (height) x 71mm (depth)

Case: ABS Fireproof

Panel Cut Out: 71mm x 29mm

CS HT24

Data sheet

Voltage Supply
230VAC

Specific References

Download

CS HT24 Manual

Download (234.25KB)

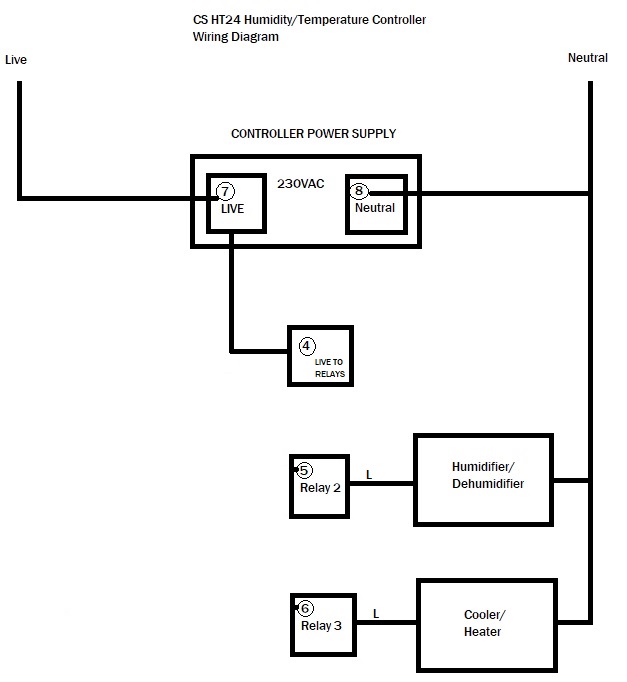

CS HT24 Wiring Diagram

Download (45.55KB)
