Freezer/Cold Room Control Box

Freezer/Cold Room Control Box

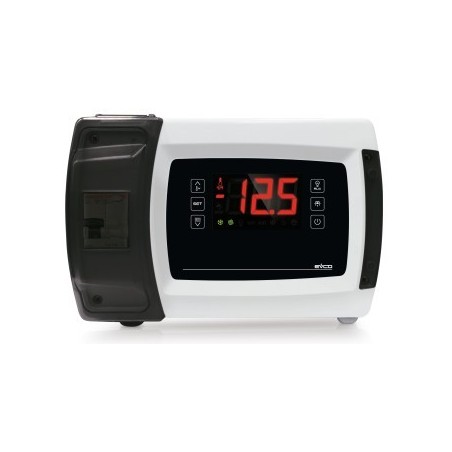

The Wall Mounted EVCO EVBOX is a Complete Solution for Cold and Freezer Room Control with IP65 Protection. Contactors and Relays are all wired and supplied in the box making for an easy installation. There is an option of a Circuit Breaker.

Specifications

Power Supply: 115 - 230 VAC

Analogue Inputs

Room Probe (PTC/NTC/Pt 1000)

Evaporator Probe (PTC/NTC/Pt 1000)

Auxiliary Probe (PTC/NTC/Pt 1000)

Digital Inputs (for NA/NC contact)

1 x Door Switch

2 x Multipurpose

Digital Outputs (Electromechanical Relays; Resistive. A @ 250 VAC)

Compressor (30A)

Defrost (16A)

Evaporator Fan (30A)

Load 4 (default room light 8A) or Configurable for Compressor 2

Size: 262mm (W) 179mm (H) 95.6mm (D)

Other Features

MODBUS RS-485 for other EVCO products

Alarm Buzzer

Low or High Relative Humidity Percentage Operation

Condenser Overheat Alarm System

Adaptive Defrost Management

“Energy Saving” Function

“Quick Cooling” Function

EVB1204N9
