The instrument has 1 x cabinet temperature sensor, 1 x 30A (10A Resistive) compressor/element relay and 1 x digital door input.
Technical Details
Mounting: Panel Mount
Housing: Self Extinguishing Plastic
Frontal Protection Rating: IP65

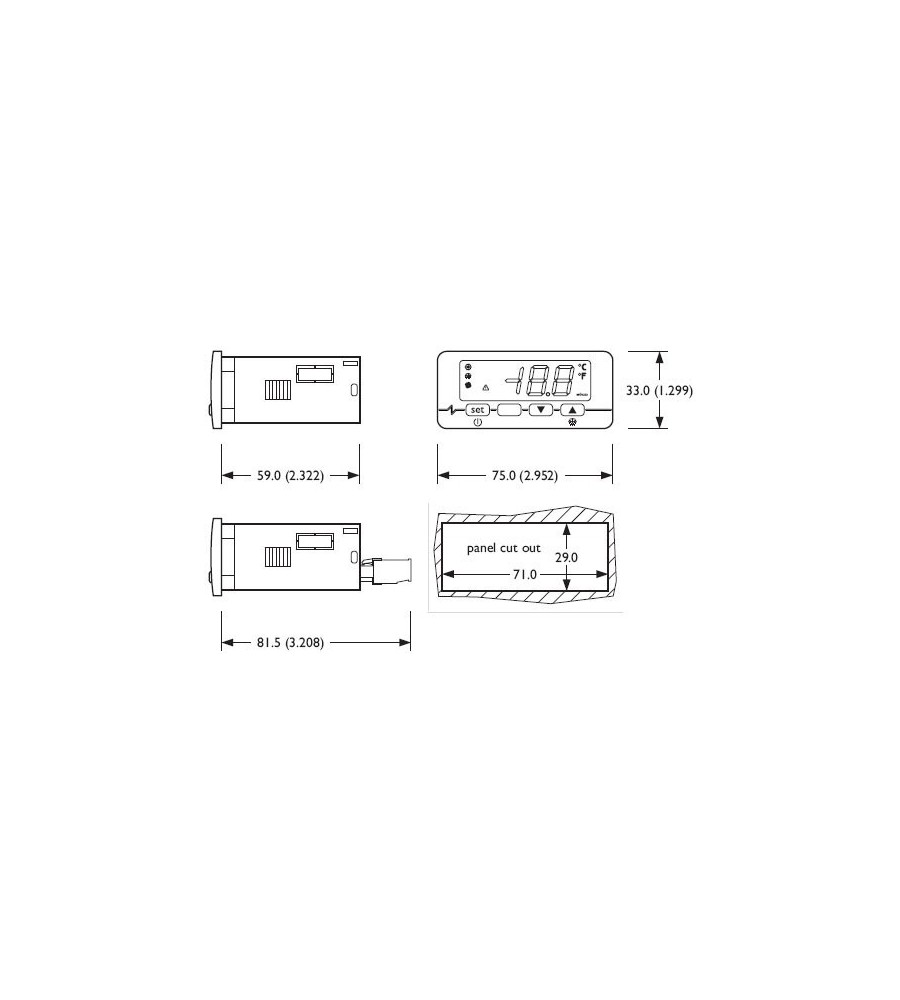

Size: 74 x 32mm (L X H)
Panel Cut out: 71 x 29mm
Display: 3-digit red LED with 1 decimal point
Power supply: 12VAC/DC
Temperature range:
-50 Deg C to +120 Deg C with a PTC Probe
-40 Deg C to +110 Deg C with a NTC Probe (Supplied)
Analogue Inputs: 1 Probe (NTC or PTC)
Digital Input: 1 Door Switch Input
Relay Outputs:
Relay 1 for Compressor or heater element 30A (10A Resistive) 250VAC (N/O contact)
Control Type: On/Off
Defrost: Compressor off cycle (Programmable)
