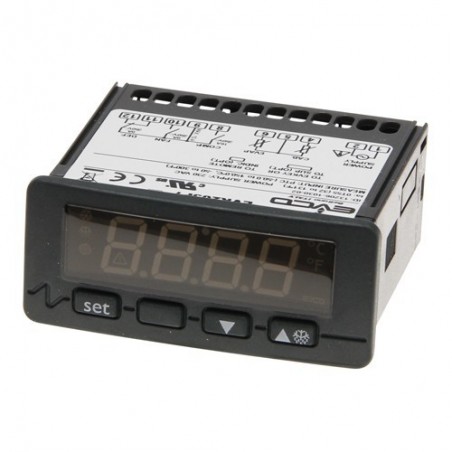

EVCO EVK431 Pie Warmer Controller

Heating/Cooling Controller 230V

Heating/Cooling Controller 230V

The EVCO EVKB31N7 is a 230V digital temperature controller with a LED display and is capable of controlling medium temperature refrigeration applications as well as heating applications. Ideal for Baine Maries and Incubators

Supplied with 1 x 1.5m NTC temperature probe.

Volume discounts

Quantity Unit price You Save
5 R576.50 Up to R320.28
10 R544.47 Up to R960.83
20 R512.44 Up to R2,562.20
50 R480.41 Up to R8,006.88
100 R448.39 Up to R19,216.50

The instrument has 1 x cabinet temperature sensor, 1 x 30A (10A Resistive) compressor/element relay and 1 x digital door input.



Technical Details

Mounting: Panel Mount

Housing: Self Extinguishing Plastic

Frontal Protection Rating: IP65

Size: 74 x 32mm (L X H)

Panel Cut out: 71 x 29mm

Display: 3-digit red LED with 1 decimal point

Power supply: 230 VAC 50hz 3VA

Temperature range:

-50 Deg C to +120 Deg C with a PTC Probe

-40 Deg C to +110 Deg C with a NTC Probe (Supplied)

Analogue Inputs: 1 Probe (NTC or PTC)

Digital Input: 1 Door Switch Input

Relay Outputs:

Relay 1 for Compressor or heater element 30A (10A Resistive) 250VAC (N/O contact)

Control Type: On/Off

Defrost: Compressor off cycle (Programmable)

EVCO EVKB31N7
